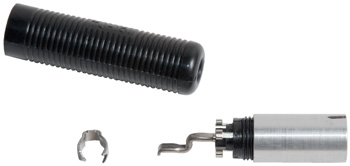

TJ-101 In-Line 4-Conductor Telephone Plug | Glass-Filled Nylon Plastic Body
Product Description
The TP-101 in-line plug connector has four-conductors that are made of a nickel-plated beryllium copper material. Mates with Nexus Series TP-120, TP-101, TPSJ-101 and TP-102 plugs.
Features
- Glass-filled nylon plastic body
- Mates with Nexus Series TP-120, TP-101, TPSJ-101 and TP-102 plugs
- Includes: TJ-101-10 telephone jack assembly, TJ-101-3 shell, TJ-105-13 strain relief clamp
Specifications
Dimensions:
0.625 x 0.625 x 2.234 in
Number of Conductors:
4
Shell Material:
plastic
Contact Material:
Nickel-plated, beryllium
Body Material:
plastic
Standard:
MIL-C-9177
Solder Contact Terminals:
Pre-tinned over nickel plating
Contact Resistance:
≤0.02 Ω
Insulation Resistance:
≥1,000 mΩ
Dielectric Withstanding Voltage (RMS):
≥ 500 V
Insertion Force:
13 lb, maximum
Withdrawal Force:
6 to 10 lb
Product Codes
- Mfr Part No:TJ-101
- EDMO #:TJ-101
- Brand:NEXUS
- Category:Electrical Interconnect
