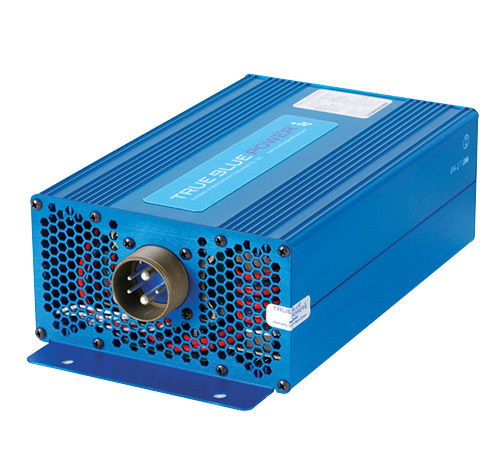

TI1200 DC-to-AC Inverter | 230 VAC, 50 Hz
Product Description
The TI1202 DC-to-AC Inverter supplies 1200 watts to power multiple cabin accessories, galley equipment, and entertainment systems. It has a small and lightweight footprint and includes the same connector as legacy designs. The TI1200 features overload and short-circuit protection up to 150% of its rated load.
This TI1200 model (EDMO# TI1202):
- 1,200 watt, 230 VAC at 50 Hz output
- 20 VDC – 36 VDC, 60A at 28 VDC input
Features
- Supplies 1200 watts to power multiple cabin accessories, galley equipment, and entertainment systems
- Ideal for use in emergency medical service, law enforcement, and VIP cabin configurations
- Compact and lightweight designweights only 7.3 lb
- 88% efficient operation
- Input transient, overload, and short-circuit protection for up to 150% of rated load
- Optional remote On/Off
- Designed and built in Wichita, Kansas, USA
Specifications
Weight:
7.3 lb
Dimensions:
12 x 6.32 x 3.46 in
Model Number:
TI1202
Input Voltage:
20 VDC – 36 VDC
Input Current:
60A at 28 VDC
Output Voltage:
230 VAC ± 3%
Output Power:
1,200 VA
Output Frequency:
50 Hz ±0.1%
Output Waveform:
Single phase, true sine wave, < 3% THD
Altitude:
55,000 ft
Humidity:
Tested to greater than 95% for 10 days, temperature cycle of 75°F to 160°F
Temperature:
–65°F to 160°F (-55°C to 70°C)
Integral Cooling:
Dual, electronically-controlled brushless fans
Mating Connector:
MS3106A24-12S
MS3057-16A (cable clamp/backshell)
Case:
Anodized aluminum extrusion, blue
Certification:
FAA TSO-C73 certified
EASA ETSO-C73 certified
RTCA DO-160G qualified
Product Codes
- Mfr Part No:6431200-3
- EDMO #:TI1202
- Brand:TRUE BLUE POWER
- Category:Inverters & Converters
