TH501 Turret Head | Daniels Crimp Tools

TH501

DANIELS MFG

CALL FOR PRICING
Special order
EDMO#TH501
MFR#TH501

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

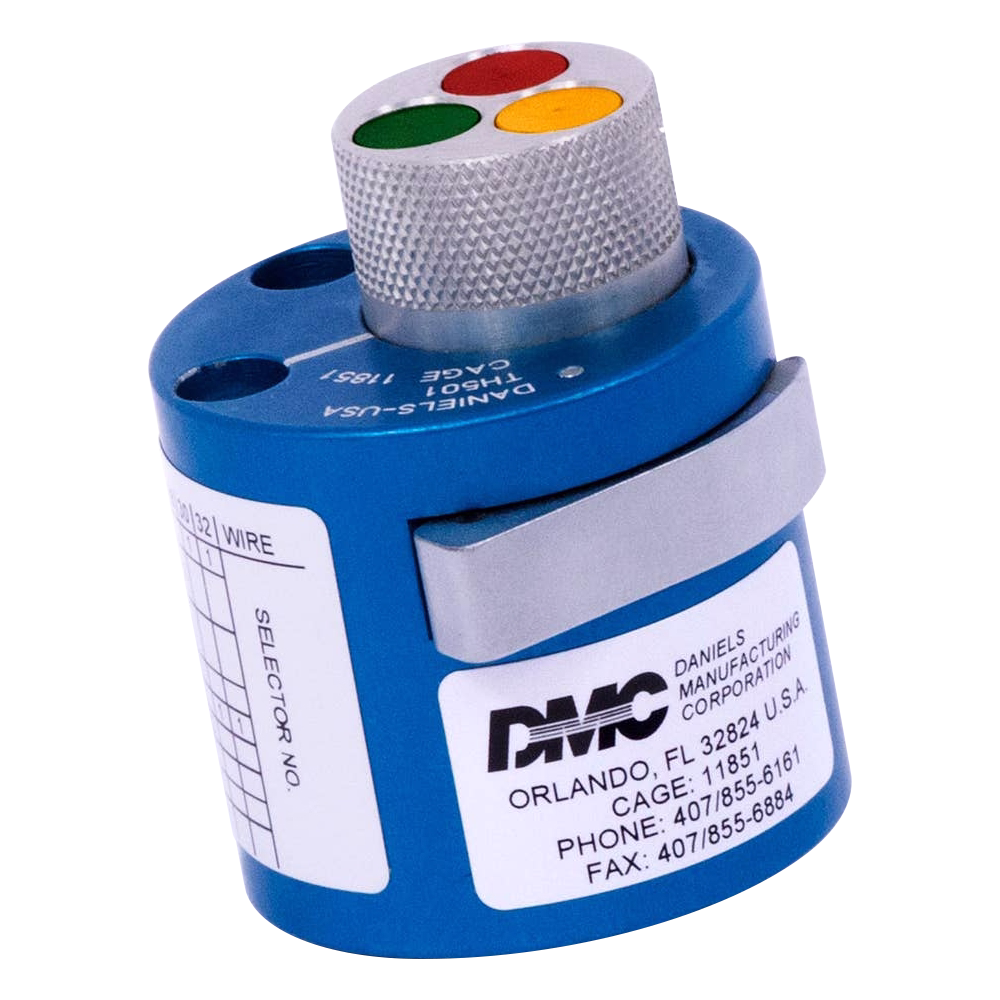

This turret head (EDMO# TH501) is used with the AF8, WA27F, and AFE8B tool frames and adapt the tool frames to a particular application. The data plate on each turret head designates which contacts the turret accommodates for its wire size and indicates selector position.

Features

Contacts Serviced:

  • Various AMP Contacts for 32–14 AWG wire

Compatible Tools:

  • AF8 Hand Crimp Tool Frame

  • WA27F Pneumatic Crimp Tool Frame

  • AFE8B Battery Crimp Tool Frame

Specifications

Dimensions:
2.00 x 1.50 in

Positioner Colors:
Red, Yellow, Green

Positioner Hole Dimensions:
Yellow: 0.078 in
Red: 0.078 in
Green: 0.156 in

Connector Type:
AMP Connectors

Product Codes

  • Mfr Part No:TH501
  • EDMO #:TH501
  • Brand:DANIELS MFG
  • Category:Tools & Cases
  • ECCN:EAR99
  • ECCN:EAR99
  • SCHEDULE B CODE:8203.20.6060
  • SCHEDULE B CODE:8203.20.6060
