TH452 Turret Head | Daniels Crimp Tools

TH452

DANIELS MFG

CALL FOR PRICING
Special order
EDMO#TH452
MFR#TH452

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

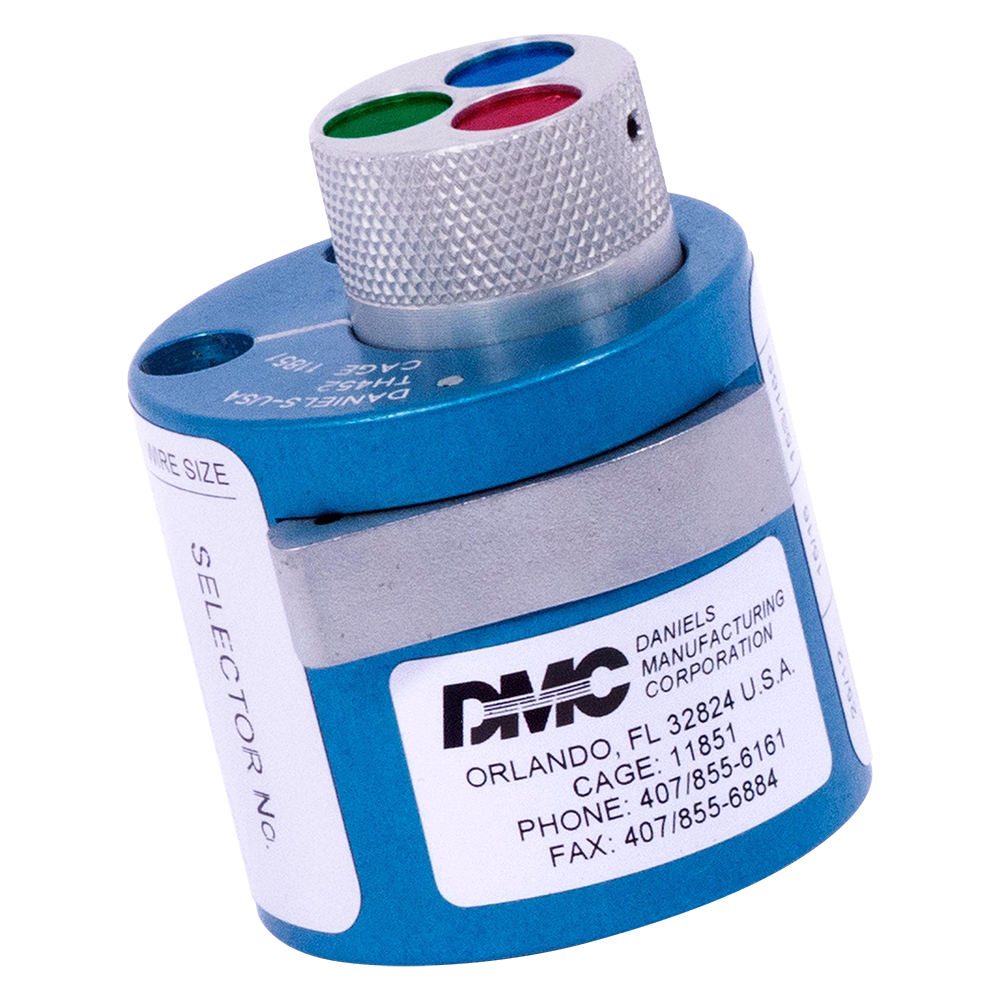

This turret head (EDMO# TH452) is used with the AF8, WA27F, and AFE8B tool frames and adapt the tool frames to a particular application. The data plate on each turret head designates which contacts the turret accommodates for its wire size and indicates selector position.

Features

  • Qualified to MIL-DTL-22520/1* and AS22520/1*

Contacts Serviced:

  • ITT Cannon 25/12 Circular Connectors

  • ITT Cannon 15/16 Circular Connectors

  • ITT Cannon 15S/16S Circular Connectors

Compatible Tools:

  • AF8 Hand Crimp Tool Frame

  • WA27F Pneumatic Crimp Tool Frame

  • AFE8B Battery Crimp Tool Frame

Specifications

Dimensions:
2.20 x 1.50 in

Positioner Colors:
Red, Blue, Green

Positioner Hole Dimensions:
Blue: 0.136 in
Red: 0.199 in
Green: 0.070 in

Connector Type:
ITT Cannon Circular Connectors

Product Codes

  • Mfr Part No:TH452
  • EDMO #:TH452
  • Brand:DANIELS MFG
  • Category:Tools & Cases
