TH329 Turret Head | Daniels Crimp Tools
Product Description

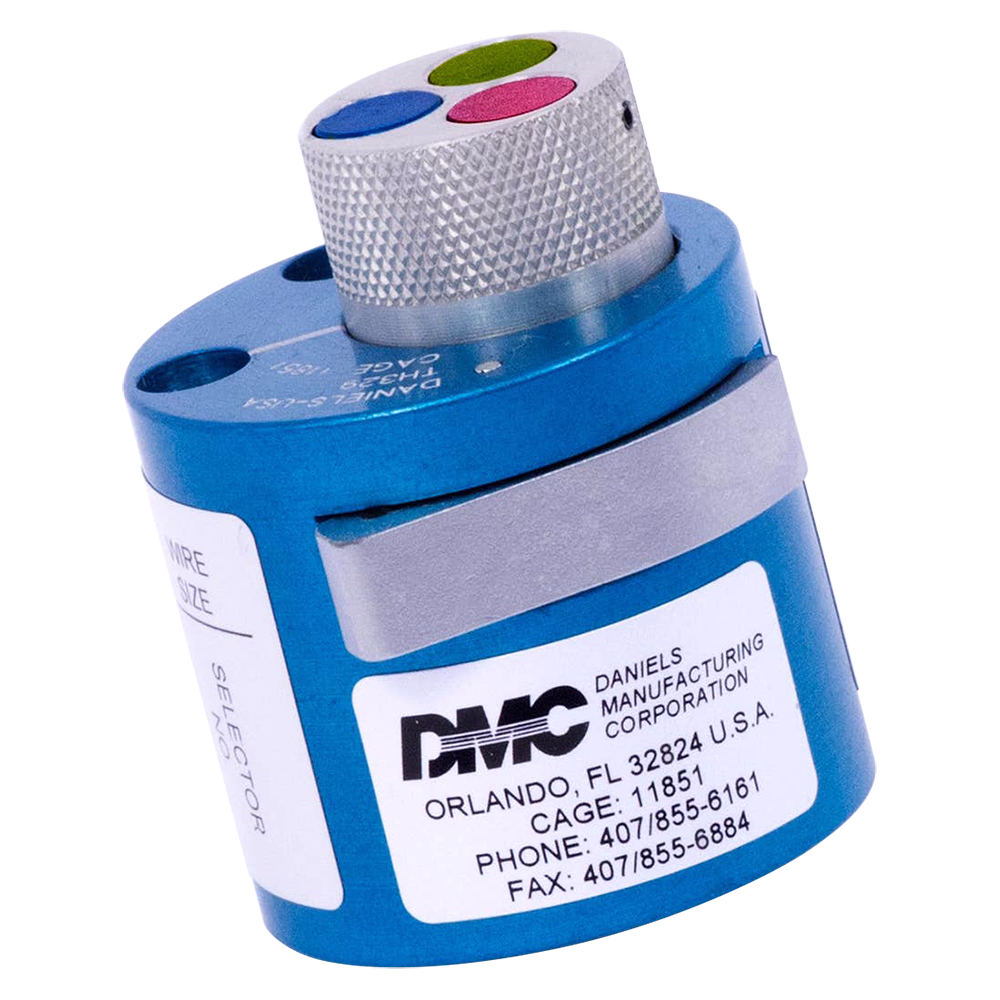

This turret head (EDMO# TH329) is used with the AF8, WA27F, and AFE8B tool frames and adapt the tool frames to a particular application. The data plate on each turret head designates which contacts the turret accommodates for its wire size and indicates selector position.
Features
Contacts Serviced:
Deutsch Contacts 1841-1-5620 Size 20 Pins for 26-20 AWG wire
Deutsch Contacts 0641-10-2056 Size 20 Pins for 26-20 AWG wire
Deutsch Contacts 0603-13-2056 Size 20 Sockets for 26-20 AWG wire
Deutsch Contacts 800-20/32-1 Size 20 Pins for 26-20 AWG wire
Deutsch Contacts 800-20/30-1 Size 20 Sockets for 26-20 AWG wire
Deutsch Contacts 1841-1-5616 Size 16 Pins for 20-16 AWG wire
Compatible Tools:
AF8 Hand Crimp Tool Frame
WA27F Pneumatic Crimp Tool Frame
AFE8B Battery Crimp Tool Frame
Specifications
Dimensions:
2.00 x 1.50 in
Positioner Colors:
Red, Blue, Green
Positioner Hole Dimensions:
Blue: 0.098 in
Red: 0.125 in
Green: 0.085 in
Connector Type:
Deutsch Connectors
Product Codes
- Mfr Part No:TH329
- EDMO #:TH329
- Brand:DANIELS MFG
- Category:Tools & Cases
- ECCN:EAR99
- SCHEDULE B CODE:8203.20.6060
