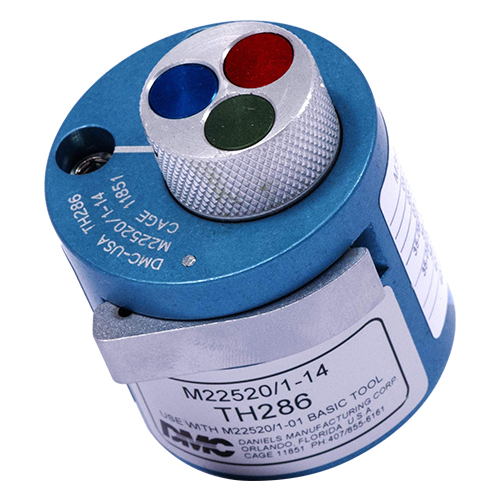

TH286 Turret Head | Daniels Crimp Tools
Product Description
This turret head (EDMO# TH286) is used with the AF8, WA27F, and AFE8B tool frames and adapt the tool frames to a particular application. The data plate on each turret head designates which contacts the turret accommodates for its wire size and indicates selector position.
Features
- Qualified to MIL-DTL-22520/1* and AS22520/1*
Contacts Serviced:
- M39012/03-0501 RF N female connector for use on RG-214/U, RG-225/U, and RG-393/U cables
- M39012/03-0502 RF N female connector for use on RG-213/U cables
- M39012/03-0503 RF N female connector for use on RG-142B/U and RG-400/U cables
- M39012/35-0501 RF SC male connector for use on RG-214/U, RG-225/U, and RG-393/U cables
- M39012/35-0503 RF SC male connector for use on RG-142B/U and RG-400/U cables
- M39012/36-0501 RF SC male connector for use on RG-214/U, RG-225/U, and RG-393/U cables
- M39012/36-0503 RF SC male connector for use on RG-142B/U and RG-400/U cables
- M39012/38-0501 RF SC female connector for use on RG-214/U, RG-225/U, and RG-393/U cables
- M39012/38-0503 RF SC female connector for use on RG-142B/U and RG-400/U cables
- M39012/40-0501 RF SC female connector for use on RG-214/U, RG-225/U, and RG-393/U cables
- M39012/40-0503 RF SC female connector for use on RG-142B/U and RG-400/U cables
Compatible Tools:
- AF8 Hand Crimp Tool Frame
- WA27F Pneumatic Crimp Tool Frame
- AFE8B Battery Crimp Tool Frame
Specifications
Dimensions:
2.00 x 1.50 in
Positioner Colors:
Red, Blue, Green
Positioner Hole Dimensions:
Blue: 0.096 in
Red: 0.125 in
Greb: 0.125 in
RF Connector Types:
N Female, SC Male, SC Female
RF Cable Types:
RG-142B/U, RG-213/U, RG-214/U, RG-225/U, RG-393/U, RG-400/U
Product Codes
- Mfr Part No:TH286
- EDMO #:TH286
- Brand:DANIELS MFG
- Category:Tools & Cases
