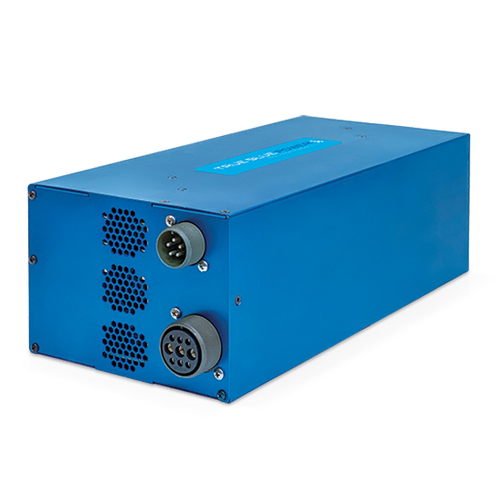

TFC4000 AC-to-AC Frequency Converter | 4 kVA, 115 VAC, 3-Phase, 360-800 Hz Input, 115 VAC, Single Phase, 60 Hz Output
Product Description
Quiet your cabin and cut replacement costs with the TFC4000 Frequency Converter. Weighing only 19 pounds, it’s the lightest and quietest frequency converter in its power class. You’ll gain more useful load and access to up to 4,000 watts of wall outlet power. This AC-to-AC frequency converter is easy to install in tight, hard-to-reach spaces and is a drop-in replacement for the GE717220-1.
Features
- 4,000 watts of output power
- 115 VAC, 60 Hz, single phase output voltage
- 93% efficiency
- Single phase, pure sine wave < 3% total harmonic distortion output wareform
- -0.8 to +0.8 power factor
- Remote On/Off
- Short circuit, under-voltage, over-voltage, overload (up to 150% for 5 minutes, without damage), DC offset protection
- Designed and built in Wichita, Kansas, USA
Specifications
Input Voltage:
115/200 VAC, 360 – 800 Hz, 3-phase
Input Phase Current:
13 A
Output Voltage:
115 VAC, 60 Hz, single phase
Output Power:
4,000 watts
Weight:
18.9 lbs (8.57 kg)
Altitude:
55,000 feet
Temperature:
-40°F to +167°F (-40°C to +75°C)
Mating Connector:
9019110-4, 9019507-2
Case:
Anodized aluminum, blue
Certification:
FAA PMA approved
FAA TSO-C230
RTCA DO-160G
Product Codes
- Mfr Part No:TFC4000
- EDMO #:TFC4000
- Brand:MID-CONTINENT INSTRUMENTS AND AVIONICS
- Category:Inverters & Converters
