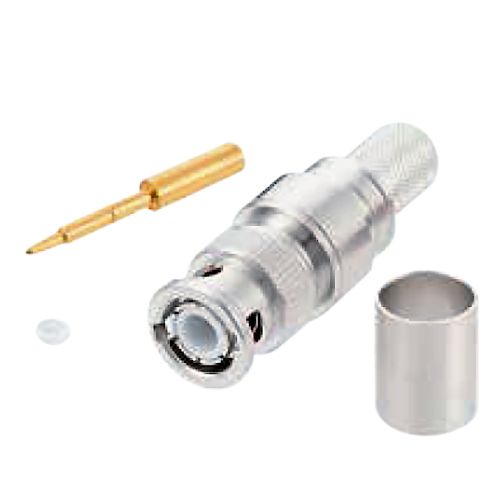

BNC Male Connector | Crimp/Solder Attachment, LMR-400 Cable
Product Description
This BNC male RF connector (EDMO# TC400BMX) is designed for general purpose testing applications and custom cable assemblies. It features a crimp/solder attachment method and compatible with LMR-400 coaxial cable.
Features
- BNC Male Connector
- 50Ω impedance:
- Straight body geometry
- LMR-400 interface type
- Crimp/Solder attachment method
- 6 GHz maximum operating frequency
Specifications
Weight:
0.083 lb (37.65 g)
Dimensions:
1.91 x 0.55 in (48.51 x 13.97 mm)
Mating Cycles:
500 cycles
Frequency Range:
DC – 6 GHz
VSWR:
1.3:1
Insertion Loss:
0.25 dB
DWV (AC):
1,500 VMRS
Insolation Resistance:
5,000 MΩ
Impedance:
50Ω
Temperature:
-55°C to 125°C (operating)
Contact Material:
gold-plated brass (50 microns)
Insolation Material:
PTFE
Body Material:
tri-metal plated brass (80 microns)
Coupling Nut Material:
tri-metal plated brass (80 microns)
Gasket Material:
silicone
Crimp Sleeve Material:
tri-metal plated brass (80 microns)
Product Codes
- Mfr Part No:TIMTC-400-BM-X
- EDMO #:TC400BMX
- Brand:TIMES MICROWAVE
- Category:Wire, Cable & Accessories
