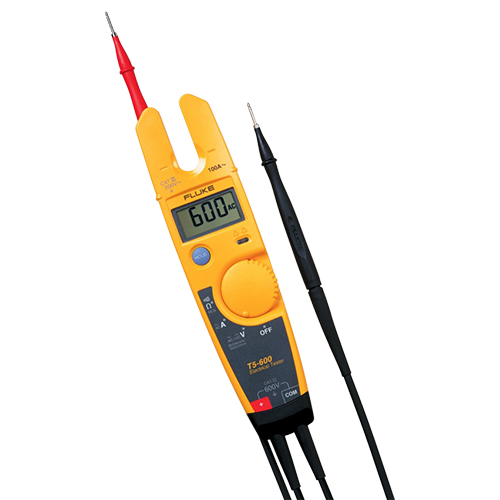

Fluke T5-600 Voltage, Continuity and Current Tester
Product Description
The Fluke T5-600 Voltage, Continuity and Current Tester is a versatile troubleshooting tool to carry to every job site. Use it to check voltage, continuity, and current with one compact tool. Just select volts, ohms, or current and the tester does the rest.
Features
- Automatically measures volts ac and volts dc with precise digital resolution
- Displays resistance to 1000 Ω
- Easy and accurate OpenJaw™ current measurement
- Continuity beeper
- Compact design with neat probe storage
- Rugged enough to withstand a 3-meter drop
- Detachable SlimReach™ probe tips are customized for national electrical standards
- Test leads accept Fluke accessory test clips
- Measurement category: CAT III 600 V
- Stay connected much longer than solenoid type tester
- Auto off mode to conserve battery life
- Optional holster attaches to a belt and neatly stows test leads
Includes:
- Fluke T5-1000 voltage, continuity and current tester
- 4 mm detachable probes
- Instruction sheet
- User documentation
Specifications
Weight:
300 g
Dimensions:
30.5 x 51 x 203 mm
Battery life:
200 hour zinc chloride, 400 hour alkaline
Battery type:
2 x AA
Low battery indicator:
Yes
Current sensor opening:
12.9 mm
Jaw opening:
12.9 mm (0.5 in)
Max wire size:
1/0 THHN Cable
Current range AC rms:
0 to 100.0 A
Accuracy AC current (50/60 Hz):
3% ± 3 counts
AC response:
Averaging
Voltage range AC/DC:
0 to 600 V
Voltage accuracy:
AC: 1.5% ± 2 counts
DC: 1% ± 1 count
Resistance range:
0 to 1000 Ω
Continuity beeper threshold:
On at < 25 Ω, off at > 400 Ω
Volts indicator LED threshold:
Guaranteed on by 30 V AC
Operating temperature:
-10°C to 50°C
Storage temperature:
-30°C to 60°C
Humidity (without condensation):
0% to 95% (5°C to 30°C);
0% to 75% (30°C to 40°C);
0% to 45% (40°C to 50°C)
Dust/water resistance:
Yes
Operating altitude:
2000 meters max
Temperature coefficient:
0.1 x (specified accuracy)/°C (< 18°C or > 28°C)
Measurement Category:
IEC 61010-2-032, IEC61010-2-033: CAT III 600 V, 100 A ac
Agency approvals:
CSA, TUV
Maximum voltage:
600 V (between any terminal and earth ground)
Warranty:
Two-years
Product Codes
- Mfr Part No:648227
- EDMO #:T5-600
- Brand:FLUKE
- Category:Wire & Cable Testers
