Differential Pressure Sender | 70 PSI, TSO Approved
Product Description
TSO approved pressure sender units from UMA Instruments feature precise, solid state circuitry that offers excellent performance and value. They are available in gauge, differential, and absolute type sending units and compatible with avgas, jet fuel, engine oil, and many other fluids. Built-in voltage regulation allows compatibility with instruments that do not have precision output voltages.

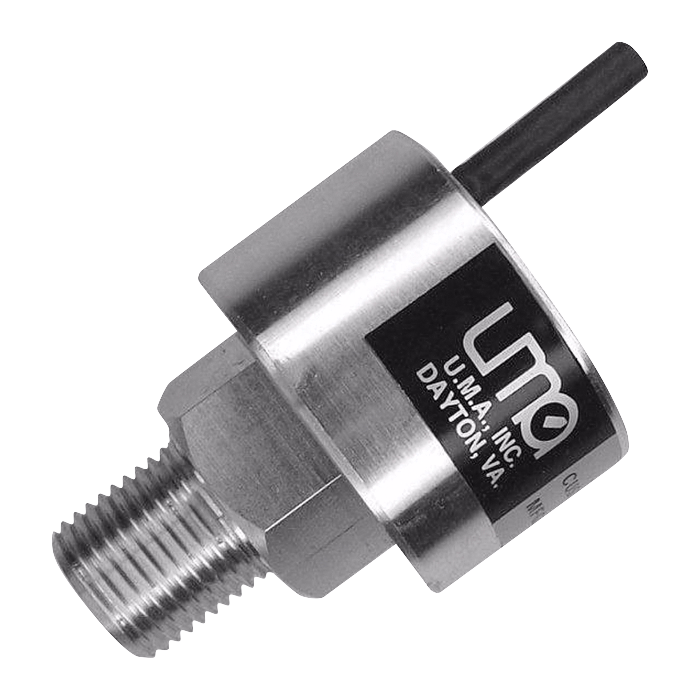

This differential pressure sender unit (EDMO# T1EU70A) has a pressure rating of 70 PSI, a maximum pressure rating of 290 PSI, and is TSO approved.
Features
Solid state circuitry
Available in gauge, differential, and absolute types
Built-in voltage regulator
Compatible with avgas, jet fuel, engine oil, and many other fluids
TSO approved under TSO C47 for fuel and oil; and TSO C45a for manifold pressure
Specifications
Weight:
2.6 oz
Length:
2 in
Diameter:
1.5 in
Pressure Rating:
70 PSI (T1EU70D)
Power Requirement:
9V – 16V
Output:
0.2V – 4.7V
Sending Unit Type:
Differential
Pressure Fitting:
1/8-inch FNPT
Temperating:
-40°C to 120°C
Material:
Aluminum
Mounting Threads:
5/8-inch 18
Connection:
3-wire connection
Media Compatibility:
AVGAS, Oil, Jet Fuel, Water
Product Codes
- Mfr Part No:T1EU70D
- EDMO #:T1EU70D
- Brand:UMA INSTRUMENTS
- Category:Clocks & Instruments
- SCHEDULE B CODE:8536.50.9040
- SCHEDULE B CODE:8536.50.9040
