Absolute Pressure Sender | 5 – 70 inHg, P2, Suction
Product Description
TSO approved pressure sender units from UMA Instruments feature precise, solid state circuitry that offers excellent performance and value. They are available in gauge, differential, and absolute type sending units and compatible with avgas, jet fuel, engine oil, and many other fluids. Built-in voltage regulation allows compatibility with instruments that do not have precision output voltages.

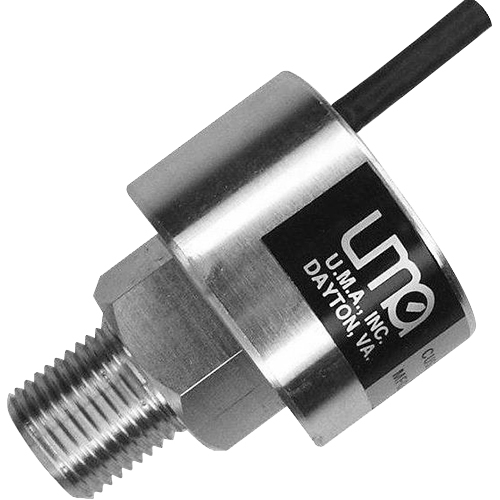

This absolute pressure sender unit (EDMO# T1EU70A-CS) has a pressure range of 5 – 70 inHg and a maximum pressure rating of 236 inHg, P2 hole, suction.
Features
- Solid state circuitry
- Available in gauge, differential, and absolute types
- Built-in voltage regulator
- Compatible with avgas, jet fuel, engine oil, and many other fluids
- TSO approved under TSO C47 for fuel and oil; and TSO C45a for manifold pressure
Specifications
Weight:
2.6 oz
Length:
2 in
Diameter:
1.5 in
Pressure Range:
5 – 70 in. Hg (T1EU70A-CS)
Power Requirement:
9V – 16V
Output:
0.2V – 4.7V
Sending Unit Type:
Absolute
Pressure Fitting:
1/8-inch 27 NPT
Temperating:
-40°C to 120°C
Material:
Aluminum
Mounting Threads:
5/8-inch 18
Connection:
3-wire connection
Media Compatibility:
AVGAS, Oil, Jet Fuel, Water
Product Codes
- Mfr Part No:T1EU70A-CS
- EDMO #:T1EU70A-CS
- Brand:UMA INSTRUMENTS
- Category:Clocks & Instruments
