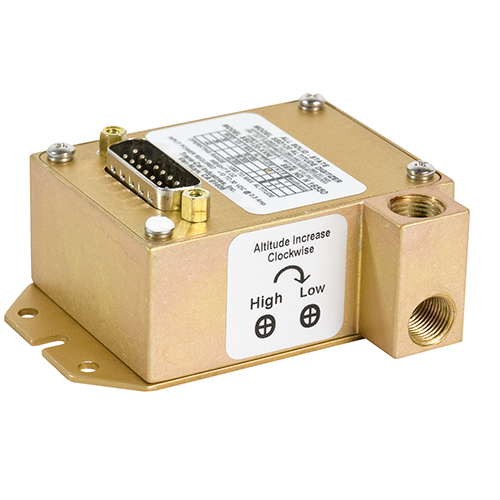

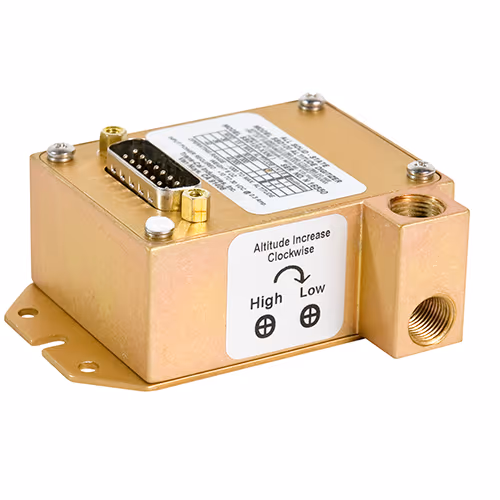

SSD120 Nano Altitude Encoder | 35,000 ft

TRANS-CAL INDUSTRIES

Call For Pricing

In stock

EDMO # SSD120-35N

MFR Part # SSD120-35N

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The SSD120-(XX)N Series High Altitude Nano Encoders are all solid-state devices that measure air pressure and convert the measurements into the ICAO parallel data for pressure altitude transmission via ICAO pressure altitude Gray Code output.

Features

This High Altitude Nano Encoder (EDMO# SSD120-35N) includes:
-1,000 ft to 35,000 ft altitude range
15 Pin D-Subminiature Mating Connector (1 ea.)
15 Pin Connector Back Shell (1 ea.)
1/8 NPT Nylon tube fitting (1 ea.)
1⁄4-inch Tube Polypropylene tee fitting (1 ea.)
1/8-27NPT Nylon Plug (1 ea.)
Features:
Dual 1/8-27 NPT static port inlets
One ICAO pressure altitude Gray code output
Optional two or five RS-232 compliant data outputs
Serial ports may be installer configured to transmit separate data protocols (message and baud data)
Power, ground, and data I/O lines provided on industry standard D-miniature connectors
Constructed with corrosion-resistant aluminum housing

Specifications

Weight:

5.9 oz (low altitude) 6.3 oz (high altitude)
Altitude ceiling:

30,000 to 42,000 ft (low altitude) 50,000 to 100,000 ft (high altitude)
ICAO Gray Code output:

Yes
RS-232 output:

Yes (except for SSD120-(XX)N model)
RS-485 output:

No (except for SSD120(XX)N-RS & RS1 models)
Operating voltage:

12VDC @ 220mA / 28VDC @ 270mA (low altitude) 12VDC @ 55mA / 28VDC @ 60mA (high altitude)
Low operating temperature:

-20°C / -55°C (E models)
High operating temperature:

70°C
Wet environment:

No
Electrical Connector:

D-Subminiature 15-pin, SSD120-(XX)N D-Subminiature 15-pin & 9-pin, -RS232 (low/high models) D-Subminiature 15-pin plug & 15-pin recpt, -RS models Static line connection: Dual 1/8-27NPT (low altitude) Dual 1/8-27NPT or 1/8 Tube Swivel Fitting (high altitude)
Approvals:

TSO-C88a ETSO-C88a MIL-STD-704E RTCA DO-160E
