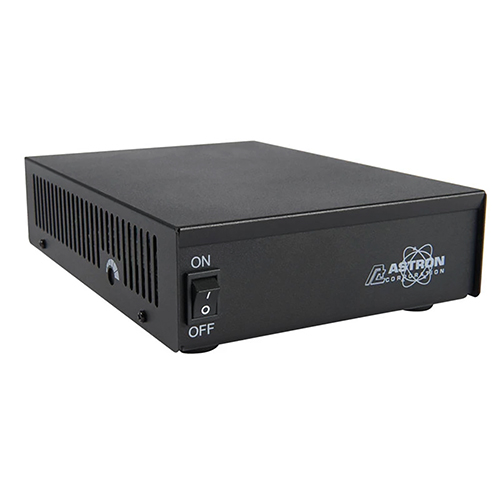

SS-10 Desktop Switching Power Supply | 10A, 7A Continuous

SS-10

ASTRON

CALL FOR PRICING
Available To Order
EDMO#SS-10
MFR#SS-10

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

The SS series switching power supplies are suited for 12/13.8 VDC communications equipment. The SS series features switching technology with greater 82% efficiency and includes special filter circuitry for use with all frequencies including HF. The SS series integrate seamlessly with standard 12/13.8 VDC equipment with heavy-duty screw-type, output terminals for ensures a safe and reliable installation.

The SS-10 switching power supply support peak ICS current from 10 amps.

Features

  • Features built-in output current limiting, over-voltage, over-temperatue, and internal fuse protection
  • Certified to UL/CUL/EN/IEC 62368-1 standards
  • Built-in EMI filter certified to EN55022/CISPR 22 (CLASS B), FCC Part15 (CLASS B), EN55024, EN61000-3-2 (CLASS D), EN61000-3-3 (HARMONIC), IEC61000-4-2-,4,5 (EMS)
  • Certified to Energy Star and CEC Environmental standards
  • RoHS Compliant (Lead Free)

Specifications

Output Voltage:
13.8 VDC

Continuous Duty:
SS-10: 7A

ICS:
SS-10​: 10A

Dimensions:
2 3/8 X 6 X 9 in

Power Terminals:
Terminal Block, Screw Tight

AC Current Draw:
Idle: 105 mA
Full Load: SS-10​: 1.3A

Fan Cooled:
SS-10​: No

Product Codes

  • Mfr Part No:SS-10
  • EDMO #:SS-10
  • Brand:ASTRON
  • Category:Power Supply
