Sonalert Audio Alarm | Davtron 800, 803, 850, 877 Chronometers

Product Description

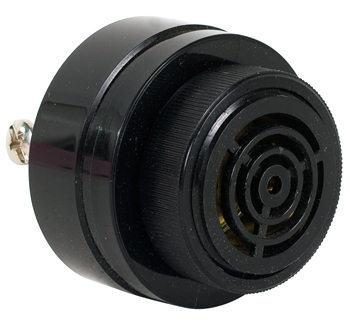

The Sonalert is an audio alarm for Davtron Chronometers, compatible with models 800, 803, 850, and 877.

Specifications

• Weight:
  1.5oz
• Dimensions:
  1.687 x 1.28 x 1.687 in.
• Voltage:
  10-48 VDC
• Frequency:
  2900 Hz
• Loudness:
  Min: 68 dB(A) min. @ 2 FT and 10 Vdc Max: 80 dB(A) min. @ 2FT and 48 Vdc
• Current draw:
  4 mA Max @ 10 Vdc 18 mA Max @ 48 Vdc
• Operating temperature:
  -30°C to +65°C

Product Codes

• Mfr Part No
  SON-ALERT-SC648
• ECCN
  7A994
• SCHEDULE B CODE
  9104000000
• SIN
  334511
• UL
  UCST2.S1290
