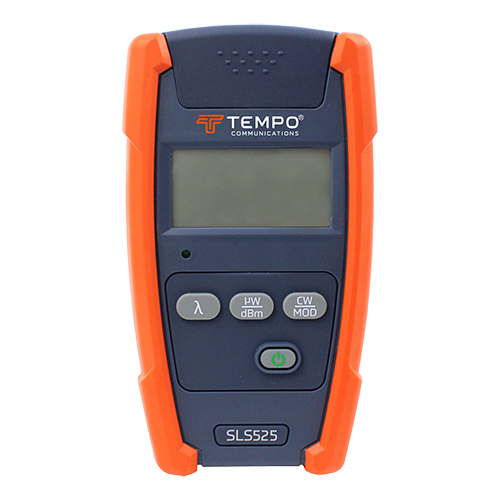

SLS525 Stabilized Light Source | Dual LED, 850 & 1300nm
Product Description
The SLS525 is a rugged, adaptable and stable fiber optic source with a dual wavelength LED. Accurate insertion loss measurements are possible when used in conjunction with the Tempo Communications optical power meters. When placing tones on the fiber the Tempo Communications optical power meter will quickly identify the fiber. The ruggedized IP54 compliant package provides test confidence when testing multimode networks.
Features
- Dual wavelength LED source at 850nm & 1300nm
- Accurate insertion loss measurements
- Tone and probe fiber networks at 270Hz, 1kHz and 2kHz
- SC, LC, FC and ST interchangeable bulkheads
- Ruggedized package, IP54 compliant
- Compatible multimode networks
- Auto Off or continuous On operation
- Battery or 120/240VAC operation
Specifications
Weight:
0.71 lbs (300g)
Dimensions:
6.1 × 3.5 × 1.3 in. (155 × 89 × 33mm)
Wavelength:
850/1300
Range of use:
Multimode
Emitter type:
LED
Spectral Width:
+/-40nm
Output Power:
-20dBm/-21dBm
Output Stability:
±0.05 dB/15min ±0.15dB/8hr
MOD Frequency:
270, 1kHz, 2kHz
Display:
LCD
Battery Life:
60 Hours
Connector Type:
SC/PC (Interchangeable LC,ST, FC)
Power Supply:
9V Alkaline or 1000mAh Lithium Battery/ 9V AC adapter
Operating Temperature:
-10ºC to 50ºC
Storage Temperature:
-20ºC to 70ºC
Relative Humidity:
0 to 95% (non-condensing)
IP Rating:
IP54
Vibration:
5Hz to 150Hz, Amplitude = 0.15mm
Shock:
Peak acceleration 25g at a pulse duration of 6ms
Product Codes
- Mfr Part No:SLS525
- EDMO #:SLS525
- Brand:TEMPO COMMUNICATIONS
- Category:Fiber Optic Inspection
