SL Series Spring-Fast Grommet Edging | 0.069–0.090 in Panel Thickness, Black, 25 ft Reel
Product Description
Spring-Fast provides 49% cost savings, 950% productivity increase and best in class high performance. The fastest, safest, most reliable way to protect wires, cables, and tubing from abrasion. It locks on with finger pressure in seconds, eliminating solvents, adhesives, ancillary materials and volatile organic compound (VOCs). Spring-Fast installs continuously and is very flexible for use on sharp corners and curved edges, such as flanged holes.

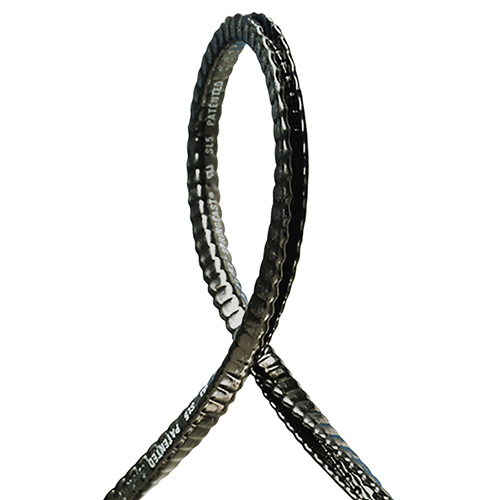

This Spring-Fast grommet edging (EDMO# SL4-0025-) is part of the SL series. It accepts a 0.069–0.090-inch panel thickness, is black in color, and comes on a 25-foot reel.
Features
Used in high performance applications such as aircraft structures/interiors, avionics systems, and more
Straight, roll formed and flanged edges
Multi axis flexibility for flanged holes and small radii inside or outside corners
High performance edge trim
100% TPE encapsulated stainless steel substrate
Snaps on fast with finger pressure
Installs continuously with multi axis conformity
Self locking with strong retention with no adhesives
Simpler install: no adhesive, fixturing, curing, clean up or OSHA concerns
Maintenance is far easier due to its ease of application, use and removal
Customization available (lengths, colors and print)
Resistant to hydrocarbons, immersion, salt spray, shock and vibration
Operating Temperature Heat continuous to -67°F to 203°F (-55°C to 95°C)
UL94 V-0 Flammability Rating
RoHS and DFARS Compliant
High gripping strength, corrosion resistance and dielectric strength
High Shock and Vibration Resistance to rms G 41.7
7 sizes to fit edge thicknesses: 0.02” to 0.145” (0.5 mm to 3.7 mm)
Available in custom cut lengths & factory pre-cut reels of 25 ft. (7.6 m), 100 ft. (30.5 m) or 500 ft. (152 m)
Specifications
Panel Thickness:
0.069–0.090 in (1.7–2.3 mm)
Width:
0.277 in (7.0 mm)
Axis Conformity:
Multi
Vicat Softening Point per ASTM D01525 Rate B:
ISO306 356ºF (180ºC)
Operating Temperature:
-67ºF to 203ºF (-55ºC to 95ºC)
Dielectric Strength:
2000 V
Substrate:
Stainless Steel
Taber Abrasion Resistance:
TPE Cushion per D1044
Finish:
TPE Cushion Black
Salt Spray:
500 Hours
Immersion:
Per NASM22529, MIL-H-5606, MIL-T-5624, MIL-L-7808 and Skydrol Compatible
Random Shock and Vibration:
MIL-STD-202
Flammability:
ASTM E 162 Tested
FAR 25.853A
UL94 V-0
Product Codes
- Mfr Part No:SL4-0025-ER0201
- EDMO #:SL4-0025-
- Brand:DEVICE TECHNOLOGIES
- Category:Wire, Cable & Accessories
- ASTM:ASTM A 666-03
- UL:UL94 V-0 (FILE No.E113553 NZMT2) FLAMMABILITY
