SC063 Sight Compass | Mounted Aircraft Compass Calibration

SC063 Sight Compass | Mounted Aircraft Compass Calibration

BARFIELD

Call For Pricing
In stock
EDMO # SC063
MFR Part # 101-01200
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

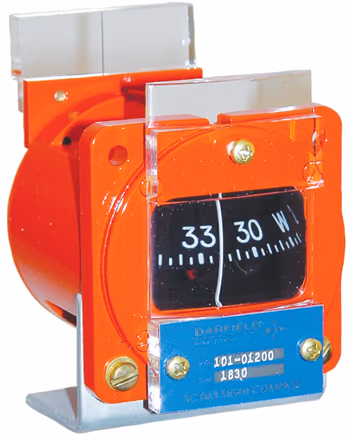

The SC063 is a portable, self-contained calibration device used to check mounted aircraft compasses. This device consists of a modified aircraft compass which has been re-screened to indicate 180 degrees from normal. The SC063 allows the operator to stand facing the aircraft making it considerably easier to transmit signals to and from the aircraft cockpit. The SC063 is unique in that the compensating magnets have been removed and a combination magnifying lens and collimating sight added.

Features

  • Reversed magnetic polarity allows aircraft to be checked from the front
  • Combination magnifying lens
  • Adjustable sight lens
  • Calibrates mounted aircraft compasses
  • Provides full time indication of magnetic direction
  • Rugged, durable and lightweight
  • Accurate within 1 degree
  • Handheld and portable
  • Included 5-1/2 foot monopod support and protective carrying case

Also Purchased

Specifications

  • Weight:
    0.72 lb
  • Dimensions:
    2.36 x 2.75 x 3.34 in

Related Products

Product Codes

  • Mfr Part No
    101-01200
  • ECCN
    7A994
  • NSN
    6605-01-285-4681
  • SCHEDULE B CODE
    9014101080
  • SIN
    334515

Documentation
