Solder Sleeve Shield Terminator | 0.255 Expanded I/D, 0.07 Recovered I/D, 22 AWG Wire Size

S02-09-R

Product Description

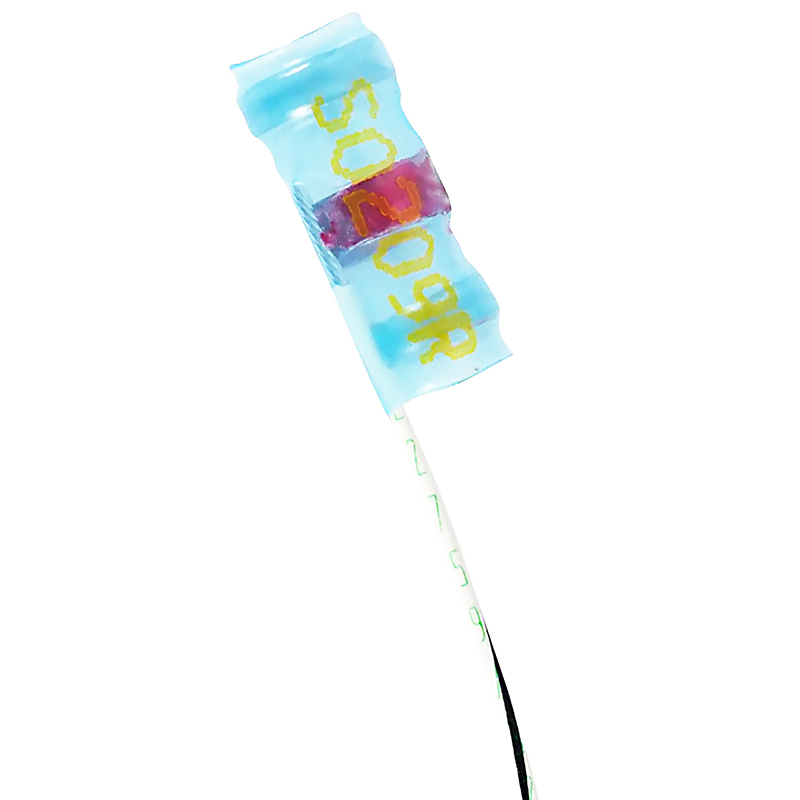

The M83519 (S01 and S02) series terminators contain a colored thermochromic temperature indicator that exhibits a distinct color change when surfaces have reached wetting temperature. This color change gives both manufacturing and Quality Control an aid in the inspection of the completed termination. This Solder Sleeve Shield Terminator is an immersion resistant terminator that meets MIL-Spec M83519/2-9. Ideal for use in shield to ground termination applications.

Features

Transparent insulation sleeve provides encapsulation, inspectability, strain relief, and insulation
Prefluxed solder preform provides a controlled soldering process
One-piece design offers easy installation and lower installed cost
Optional preinstalled ground leads provide convenience

Specifications

Expanded I/D:
0.255 in (6.48 mm)

Recovered I/D:
0.07 in (1.78 mm)

Wire Size:
22 AWG (0.34 mm²)

Shield O/D:
0.085 in (2.15 mm)

Temperature Indicator Type:
Thermochromic

Pre-Installed Lead:
Yes

Operating Temperature:
150°C (max)

Resistance Properties:
Immersion Protection

Wire Temperature:
125°C (max)

Product Codes

Mfr Part No:169750-000
EDMO #:S02-09-R
Brand:RAYCHEM
Category:Electrical Interconnect
ECCN:EAR99
ECCN:EAR99
SCHEDULE B CODE:8536.90.4000
SCHEDULE B CODE:8536.90.4000
