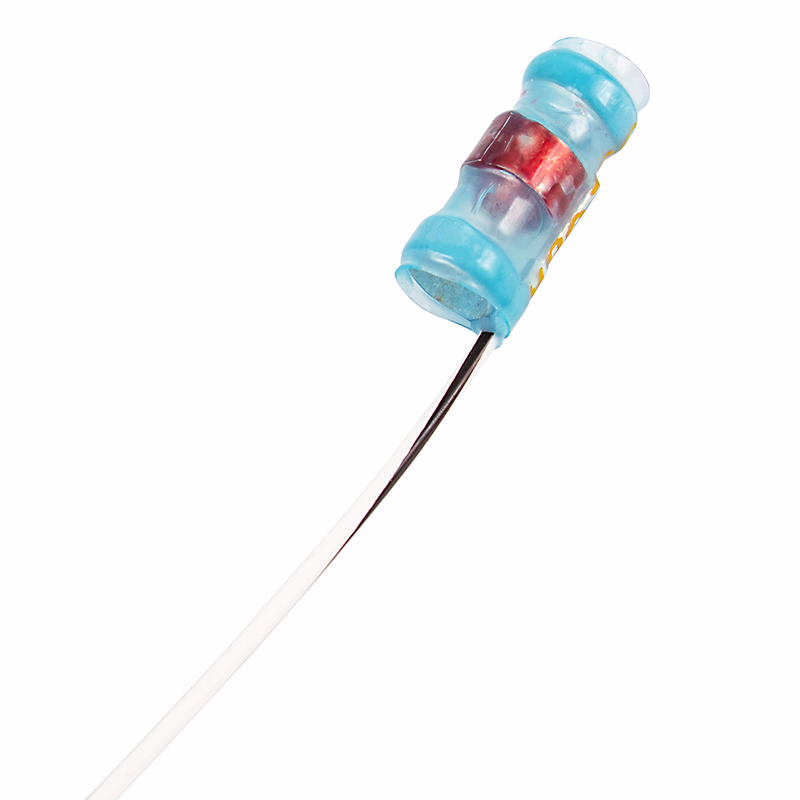

Solder Sleeve Shield Terminator | 0.3 Expanded I/D, 0.1 Recovered I/D, 20 AWG Wire Size
Product Description
The M83519 (S01 and S02) series terminators contain a colored thermochromic temperature indicator that exhibits a distinct color change when surfaces have reached wetting temperature. This color change gives both manufacturing and Quality Control an aid in the inspection of the completed termination. This Solder Sleeve Shield Terminator is an immersion resistant terminator that meets MIL-Spec M83519/2-5. Ideal for use in shield to ground termination applications.
Features
- Transparent insulation sleeve provides encapsulation, inspectability, strain relief, and insulation
- Prefluxed solder preform provides a controlled soldering process
- One-piece design offers easy installation and lower installed cost
- Optional preinstalled ground leads provide convenience
Specifications
Product Length:
0.75 in (19.1 mm)
Compatible Jacket Diameter Range:
0.276 in (7 mm)
Expanded I/D:
0.3 in (7.62 mm)
Recovered I/D:
0.1 in (2.54 mm)
Wire Size:
20 AWG (0.5 mm2)
Shield O/D:
0.17 in (4.3 mm)
Temperature Indicator Type:
Thermochromic
Pre-Installed Lead:
No
Operating Temperature:
150°C (max)
Resistance Properties:
Immersion Protection
Wire Temperature:
125°C (max)
Government Qualified:
No
MIL/NAS Specification (MIL-S-83519, NAS-1747):
M83519/1
Product Codes
- Mfr Part No:958166-000
- EDMO #:S02-05-R
- Brand:RAYCHEM
