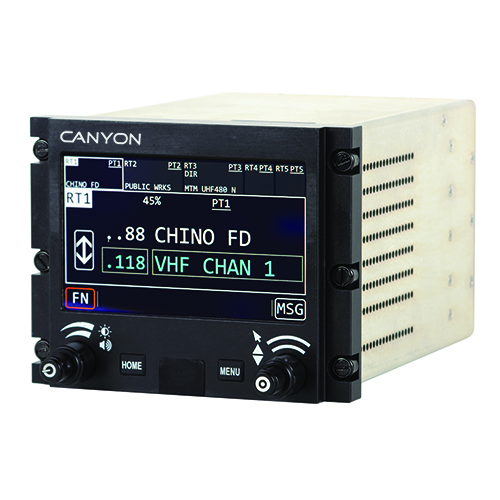

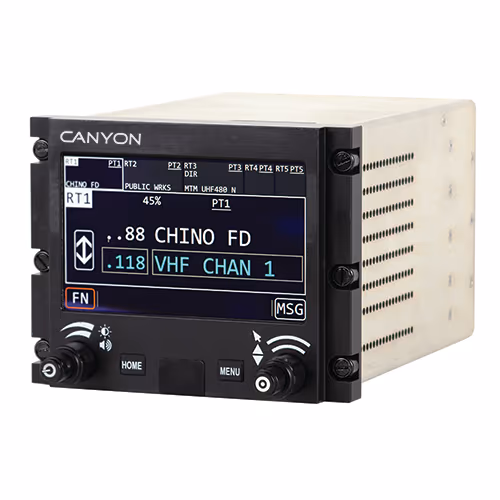

RT-7000 Panel Mount Tactical Radio | 2 ea, APX Modules

CANYON AEROCONNECT

Call For Pricing

Available to order

EDMO # RT7000-6-6

MFR Part # RT7000PMR-006-001-0007-0016

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The RT-7000 Panel Mount Tactical Radio satisfies all public safety and para-public voice communications needs. This unit supports 29.7 MHz to 960 MHz communications with up to three embedded and individual channels, thus providing the equivalent of three individual radios with the ability to support up to two external handheld radios. The RT-7000 provides P-25 Phase 1 and 2 digital modulation across the entire range. With the addition of up to two modules, it can also cover VHF, UHF, and 700/800 MHz public safety bands including trunking and Motorola-proprietary radio network features.

The RT-7000 is a software-defined device which can be easily be upgraded to meet evolving requirements for software and hardware without replacing the radio. This unit is equipped with an integrated audio and radio control display. All audio and radio functions can be controlled using either the touchscreen display or the dual concentric front panel knobs.

This RT-7000 panel mount tactical radio (EDMO# RT7000-6-6) includes two APX modules providing VHF/UHF, 700/800, P25 phase 1 and 2 trunking, multi-key AES/DES/DES-XL/DES-OFB, FCC Narrowband.

Features

Supports 29.7 MHz to 960 MHz communications with three embedded and individual channels, ATC communications, P-25 Phase 1 & 2 digital modulation, trunking, SmartZone, and SmartNet
Flight tunable — including P-25 frequency and NAC data
Touchscreen color LCD display with programmable day/night backlighting including MIL STD 3009 NVIS
Single port antenna interface; compatible with RT-5000 antennas
Programmable preset channels (up to 1000)
Programmable scan patterns
Embedded simulcast and relay operations
TSO/ETSO for Comm and display
Multikey FIPS-140-2 encryption

Also Purchased

Specifications

Weight:

8.5 lb (3.85 kg), maximum
Dimensions:

7 x 5.75 x 4.38 in
Voltage Requirements:

27.5 VDC ±20%
Temperature:

-4°F to 131°F (-20°C to 55°C)
Channel Spacing:

6.25/8.33/12.5/25 kHz
Certification:

TSO/ETSO 169a ATC COM & C113 Display
Frequency Range:

29.7 MHz – 960 MHz AM/FM analog 30 MHz – 50 MHz LMR 30 MHz – 88 MHz military 87.5 MHz – 108 MHz FM broadcast 108 MHz – 118 MHz VOR voice 118 MHz – 154 ATC and Civil Air Patrol 136 MHz – 174 MHz LMR 156 MHz – 174 MHz Maritime 225 MHz – 400 MHz Military 380 MHz – 520 MHz LMR 764 MHz – 960 MHz LMR
Transit Power:

ATC COMS: 4W, minimum AM: 4W, minimum FM: 10W, minimum P-25: VHF – 6W, UHF – 5W, 700/800 MHz – 3W
APCO P-25:

All P-25 Bands — Conventional Common Air Interface (CAI), Phase I, II Trunking, Analog Trunking (SmartZone, SmartNet)
Encryption:

FIPS 140-2, Level 2/3 P-25 AES & DES Analog DES, DES-XL, DVP P-25 OTAR Multikey
