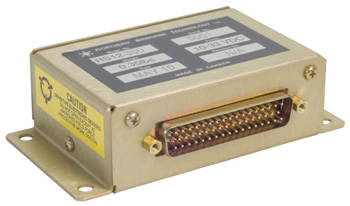

GPS DATA SWITCH/35K FT

The RS12 is a compact, high density, bulkhead mounted remote switching unit designed to handle the switching requirements of navaid, audio, or other interface applications. The RS12 remote switch is a unique interface device that allows large numbers of data or audio lines to be transferred with a single logic level control line.

Features:

• General purpose GPS/LORAN/NAV/Audio transfer swtich
• Provides 12 poles of switching, selectable as one group, or as 3 sets of 4 poles
• 14/28 Vdc operation
• Gold contacts, sealed 50 g relays
• Includes flag load resistors and flag bias generator
• Ground keying
• Qualified to 35,000 feet
