Rack Mounted GPS Amplified Splitter | 1 Input, 16 Output
Product Description

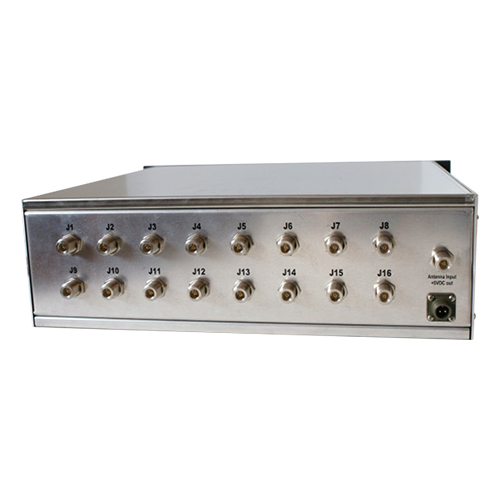

The GPS rack mounted amplified loaded DC blocked splitter feature an active one input and 16 output RF splitter on the frequencies 1.1 GHz — 1.7 GHz and fits in a server rack. This GPS splitter is designed to amplify and split signals within the L-band spectrum to multiple devices from a single antenna. In the standard configuration, the J1 port passes DC voltage from a connected device to the antenna or anther device up from the splitter. The other ports (J2 — J16) are DC blocked and loaded with 200Ω resistors to simulate antenna current draw preventing antenna alarm faults.

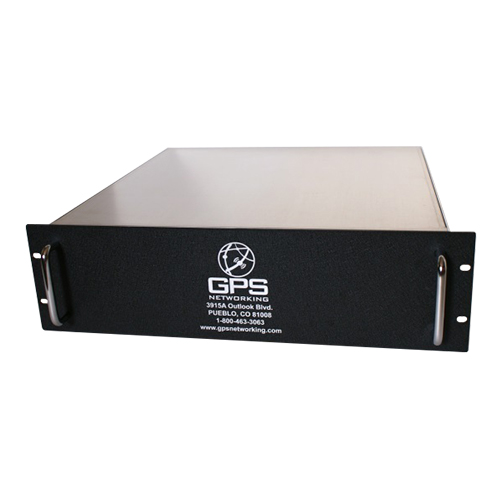

This rack mounted amplified GPS splitter (EDMO# RMALDCBS1X) features one input and 16 outputs.
Features
- Excellent amplified balance: < 1 dB variation between ports
- Flat group delay: < 1 ns variation between L1 & L2
- High output gain: 14 dB typical across operating frequencies
- Wide accepted frequency range from entire L-band range & major GNSS constellation
- Efficiently blocked ports: 200Ω resistor prevents alarm faults
- LED power light
- -48 VDC power option available
- Durable rugged standard 3U chassis
Specifications
Weight:
10.8 lb (4.90 kg) max.
Dimensions:
17.17 x 17.03 x 5.25 in (not including connectors)
Operating Frequencies:
-57°C to 87°C
Frequency Range:
1.1 GHz — 1.7 GHz
Characteristics:
50Ω
Req. DC Input V.:
3.3 — 15 VDC
Current Draw:
76 mA
Gain:
13 dB — 15 dB (14 dB, typical)
High Isolated Gain:
-2.0 dB to 2.0 dB (0.0 dB, typical)
Input SWR:
1.5:1
Output SWWR:
1.5:1
Gain Flatness:
0.5 dB, typical (1.0 dB, max.)
Amplitude Balance:
1.0 dB, max.
Isolation:
L1: 17 dB — 76 dB
L2: 12 dB — 71 dB
Group Delay Flatness:
1 ns, typical
Input P1dB:
-23.5 dBm
Product Codes
- Mfr Part No:RMALDCBS1X16
- EDMO #:RMALDCBS1X
- Brand:GPS NETWORKING
- Category:GPS Components & Accessories
