TNC Female Straight Crimp Connector | Cable Group C1, RG142, Crimp Attachment Method
Product Description

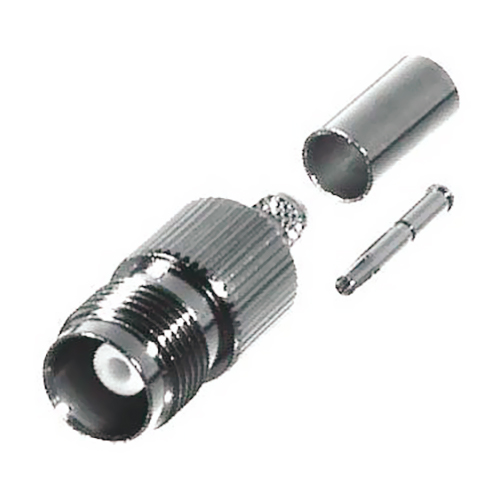

The RFT1216-C1 straight, TNC female crimp connector features crimp attachment method for fastening to group C1 coaxial cables, such as RG-142 type cable.
Features
- DC – 7 GHz frequency range
- 50Ω impedance
- Compatible with G-55A, RG-55B, RG-142, RG-142A, RG-142B, RG-223, RG-400/U, Alpha 9055, 9055B, 9223, Belden 8219, 84142 cable types
Specifications
Weight:
0.06 lb
Dimensions:
1.134 x 0.453 in (28.80 x 11.50 mm)
Frequency:
0 GHz – 7 GHz
Connector Type:
TNC female
Thread Size:
7/16-28 UNEF-2A
Body Attachment Method:
crimp
Impedance:
50Ω
Working Voltage:
500 Vrms @ sea level
Insulation Resistance:
5,000 MΩ, min.
Temperature Range:
-65°C to 165°C
Body Material:
nickel-plated brass, 100 µ-in
Press Body Material:
nickel-plated brass, 100 µ-in
Insulation Material:
PTFE
Pin Material:
gold-plated phosphorus bronze, 3 µ-in
Ferrule Material:
nickel-plated brass, 100 µ-in
Compatible Cable:
RG-55, RG-55A, RG-55B, RG-142, RG-142A, RG-142B, RG-223, RG-400/U, Alpha 9055, 9055B, 9223, Belden 8219, 84142
Product Codes
- Mfr Part No:R/FRFT1216-C1
- EDMO #:RFT1216-C1
- Brand:RF INDUSTRIES
- Category:Electrical Interconnect
