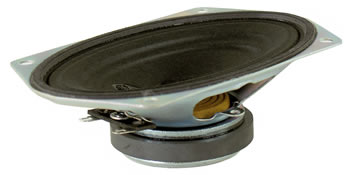

3x5" Oval Voice Range Speaker | 8Ω Rated, 150Hz—10,000Hz, 4W Rated Power, 93 dB SPL
Product Description
The RDC35S voice range speaker delivers quality audio for voice applications. The ferrite magnet can deliver 4-watts rated power on an 8Ω impedance. Its paper cone offers excellent clearity for voice operations.
This 3 x 5 oval voice speaker (EDMO# RDC35S) features a 8Ω rated impedance, 4-watts rated power handling, and a sensitivity of 93 dB SPL.
Features
- 3 x 5 inch oval speaker
- 8Ω rated impedance
- Optimized for voice operations
- 150 Hz — 10,000 Hz frequency response
- ferrite magnet and paper cone
Specifications
RoHS Compliant:
yes
Nominal Basket Diameter:
3 x 5 in (77 x 127 mm)
Impedance:
8Ω, rated
Power:
4 watts, rated
Program Power:
8 watts
Frequency Range:
150 Hz — 10,000 Hz
Sensitivity:
93 dB SPL (2.88 V input measured at 1 meter)
Magnet Weight:
2.4 oz (68 g)
Resonant Frequency (fo):
328 Hz
DC Resistance (Re):
6.3Ω
Mechanical Q (Qms):
10.1
Electrical Q (Qes):
2.84
Total Q (Qts):
2.22
Maximum Linear Excursion (Xmas):
0.9 mm
Basket Material:
Stamped Steel
Terminal Size:
0.19 x 0.02 in
Magnet:
ferrite
Voice Coil Wire:
copper
Voice Coil Form:
aluminum
Cone:
paper
Cone Edge:
paper
Dust Cap:
felt
Product Codes
- Mfr Part No:RDC35S
- EDMO #:RDC35S
- Brand:MISCO SPEAKERS
