RB-14/28-25 Series APU | 25A, 14/28VDC, 50Hz, 220V


DB ASSEMBLY, INC

CALL FOR PRICING
Available To Order
EDMO#RB-142825E
MFR#R-14/28-25E

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

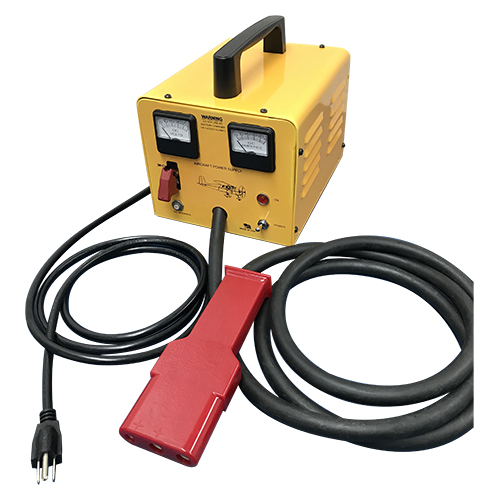

The RB-14/28-25 Series Aircraft Ramp Power Supply is an aircraft flight line service and maintenance tool. The APU unit has a filtered 14 or 28 volt DC power supply with an amperage capability up to 25 amperes for testing of aircraft electrical systems. This ramp or hangar accessory is an absolute must for avionics service, gear and flap actuator exercising and other electrical system service.

Version R-14/28-25E is designed as a power supply only unit with a 50Hz frequency and 220VAC.

Features

  • Voltage is filtered to eliminate hum and is regulated against input AC line voltage changes
  • Output DC voltage and current are displayed on front panel meters
  • DC voltage is also protected by a circuit breaker
  • Selection of output voltage by front panel switch which is protected by a switch guard
  • Closing the guard forces the switch to the 14 volt position
  • Plugs directly into the APU receptacle on the aircraft
  • AC/DC cable length is 8' each
  • Steel housing
  • Rubber feet and handle

Specifications

Weight:

32 lb

Dimensions:

8 x 10 x 10 in.

Input voltage:

220 VAC

AC input amperage:

4.5/9 A

Input frequency:

50Hz

Output voltage:

14/28 VDC

DC output amperage:

25A

Output wattage:

350/700 W

Product Codes

  • Mfr Part No:R-14/28-25E
  • EDMO #:RB-142825E
  • Brand:DB ASSEMBLY, INC
  • Category:Auxiliary Power Units & Battery Chargers
