RAV30512B UHF Broadband Antenna | 30–512 MHz, White
Product Description

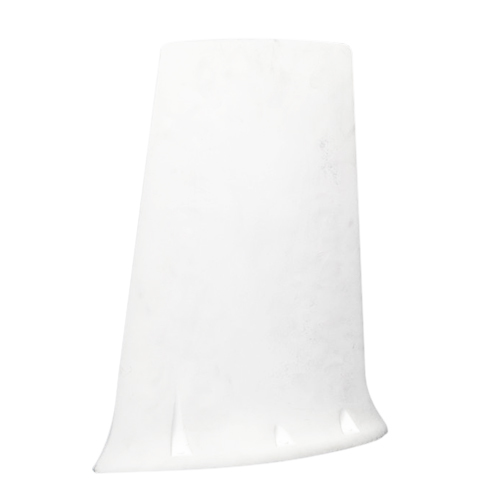

The RAV30512 is a broadband airborne communications antenna designed for air speeds less than Mach 1. The antenna housing is a fiberglass epoxy design to withstand the exposure to sand and dust particles of desert areas. The antenna is foam filled to reduce the effects of extreme temperature changes, extreme humidity and excessive shock and vibration. It is mechanically and environmentally qualified to MIL-A-55680 (AT-1108) and has continuous operation altitudes of up to 50,000 feet and temperatures between -65º F and 131º F. It can also withstand the impact shock of 30g and the steady-state acceleration of 6g. This antenna has the same mounting pattern and footprint as the AT-1108/ARC for easy interchangeability if needed. A conductive mounting gasket is supplied with this product.
This RAV30512 Broadband Antenna (EDMO# RAV30512W) comes in gloss white.
Features
- Mechanically and environmentally qualified to MIL-A-55680 (AT-1108) specifications
- Operational altitude up to 50,000 feet and temperatures between -65°F and 131°F
- Resistant to impacts of 30g and the steady-state acceleration of 6g
- Utilizes the same mounting pattern and footprint as the AT-1108/ARC
- Includes a conductive mounting gasket
Specifications
Weight:
3.5 lb, max
Dimensions:
14.44 x 11.5 x 3.72 in
Application:
Airborne communications
Frequency:
30 MHz - 512 MHz
Impedance:
50Ω, nominal
Gain:
-20 dBi @ 30 MHz to 0 dBi @ 300 MHz
VSWR:
3.5:1, maximum
Polarization:
Vertical
Pattern:
Omni-directional
Connector:
TNC female
RF Power Capacity:
50 watts CW
Color:
CARC white
Product Codes
- Mfr Part No:RAV30512W
- EDMO #:RAV30512W
- Brand:RAMI
- Category:Antennas & Couplers
