1000Base-T DataMaster Q100 Cable | 22(19) SPCA Conductor
Product Description

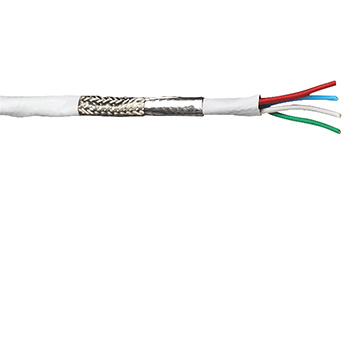

DataMaster® Q100 series cable from has a four-connector "Quadrax" design offering 1000 Base-T ethernet support and Cat 5e performance. These lightweight and small cables are designed specifically for high speed airborne data applications. The lightweight Q100 Data Quad cables are ideal in many aircraft systems where thousands of feet are needed such as in-flight entertainment systems.
Features
- Stable electrical performance supporting 1000 base T Ethernet Cat5e performance
- Lightweight and small size for high speed data applications
- Silver plated copper and copper alloy conductors with tin or silver plated copper braids
- Non-shrinkback insulation terminates easily and fits standard connectors
- 1000 Base T Cat 5e performance
- 100 Ohm and 150 Ohm impedances are standard and temperature rated at 150C and 200C
- Four conductor quadrax design
- Proprietary fluropolymer insulation
- Fluropolymer tape binder
- Flat TPC inner braid and round wire TPC outer braid
- SPC and other shield configurations available
- FEP jacket (laser markable ETFE and PFA available)
- Supports Gigabit Ethernet, FDDI, USB, and 1397 standards
Specifications
Weight (lb/mft):
29 lb/mft
Conductor:
22(19) SPCA
Overall Diameter:
0.186 in
Capacitance (pF/ft):
13.0
Operating Temperatures:
-55°C to 150°C
Jackets:
FEP (laser markable ETFE and PFA available)
All Cables Comply with RoHS and REACH Directives
Cables pass FAR 25.853, Airbus ABD0031, and Boeing Smoke & Toxicity Requirements
Product Codes
- Mfr Part No:Q100-22(19)-TT-F
- EDMO #:Q10022310
- Brand:HARBOUR INDUSTRIES
- Category:Wire, Cable & Accessories
