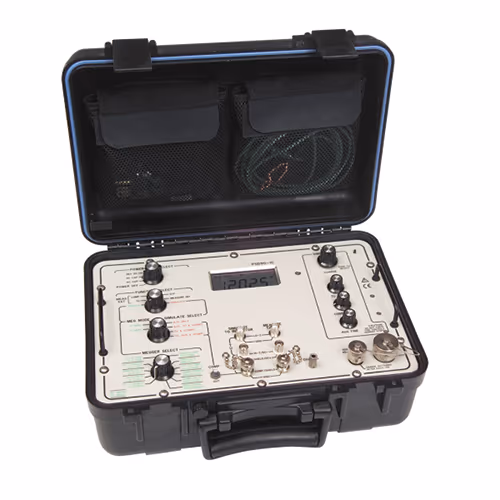

PSD90-1C/61 AC/DC Capacitance Test Set | Universal
Product Description

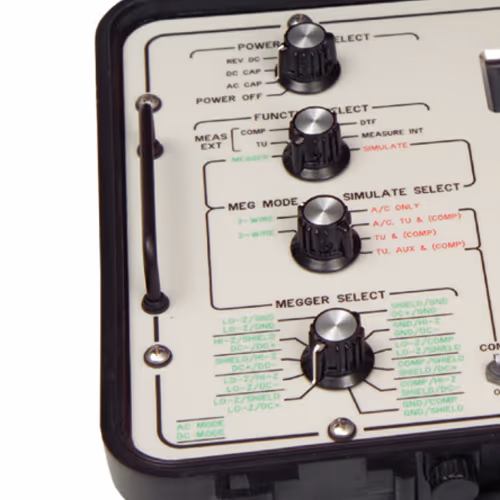

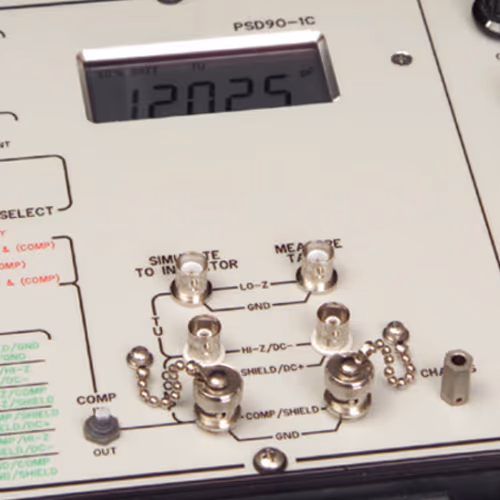

The PSD90-1C61 Universal AC/DC capacitance tester checks out and calibrates AC or DC fuel gauging systems, both on or off of an aircraft. This test set can simulate capacitance values for the operation of indicators and it also measures the insulation resistance of tank units and cabling. Virtually automatic operation no manual nulling is required. Includes four modes: manual Megger/DC cap ranging, low voltage/low current mode, REV DC (DC+) mode, and distance-to-fault (DTF) mode.
Version (MFR#878) is designed for universal non-F-16 fleet.
Features
Test Set Includes:
- 110V Charger, CBL PSD90-1C
- 230V Charger, CBL PSD90-1C
- BNCF Rev. Polarity connector
- BNCM Rev. Polarity connector
- Ground cable
Features:
- Easy to operate/calibrate
- Annual calibration
- Lightweight / portable
- Rechargeable battery or externally powered
- Percent of battery capacity displayed
- Self-test on power-up
- Measures DC voltage
- Manual or Auto Ranging
- 2 and 3 Wire Megger
- Compliant with Boeing Spec 10-61959 Rev H
- MIL-STD-810 Method 511.4 certified
- Traceable to NIST
Specifications
Weight:
13 lb
Dimensions:
10.6 x 14. x 6.5 in.
Input power:
100 - 230 VAC @ 45 - 440 Hz
Battery:
1 Rechargeable 12 VDC Sealed Lead Acid
Operation:
12 hours continuous at 25°C
Charge time:
8 hours max
Range:
0.000 pF to 39.99 KpF
Operating temperature:
-40°C - +55°C
Altitude:
15,000 ft (4600 m) maximum
Product Codes
- Mfr Part No:878
- EDMO #:PSD90-1C61
- Brand:VIAVI
- Category:Fuel Quantity Test Sets
