Auxiliary Power Supply & Charger | 28V, 100A, 220V, 50Hz, Piper & Cessna Plug
Product Description

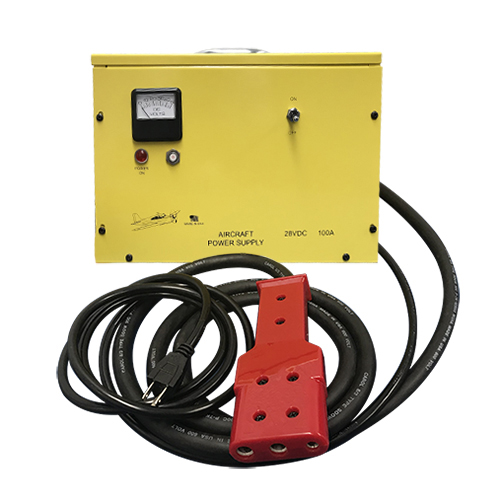

The PS-28100 Aircraft Ramp Power Supply and Battery Charger is a dual-purpose aircraft flight line service and maintenance tool. The unit has a filtered 28 volt DC power supply with up to 100 amperes capability for tests of aircraft electrical systems and a secondary mode for recharging run-down batteries.
Version (EDMO# PS-28100EP) is an auxiliary power supply and charger with 28 volt output, 100 amps, 220 volt input, 50Hz frequency, and includes Piper and Cessna plugs.
Features
- 100 amperes filtered 28 volt supply
- Aircraft APU connectors furnished
- Operates from 220 VAC, 50 Hz
- 8 foot DC cable furnished
- Ferro-resonant regulated supply
- DC current limited
- Front panel meter, controls
- Portable, weighs only 62 lb
- Extensive testing by FBO's
Specifications
Weight:
62 lb
Dimensions:
13 x 9 x 10 in.
Input voltage:
220VAC
AC input amperage:
35A
Input frequency:
50Hz
Output voltage:
28VDC
DC output amperage:
100A
Output wattage:
2800W
Product Codes
- Mfr Part No:P-28100EP
- EDMO #:PS-28100EP
- Brand:DB ASSEMBLY, INC
- Category:Auxiliary Power Units & Battery Chargers
