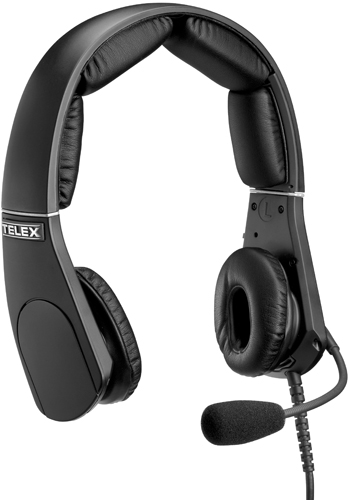

Ascend ANR Headset | Double-sided, Standard plug & jack
Product Description
Telex's next-generation Ascend ANR Headset provides a redesigned, more comfortable fit with high-quality sound. This versatile design was created for the cockpit but is easily reconfigured for personal use with the ability to change the connector, remove the boom, or add a battery. The advanced noise reduction (ANR) system coupled with limited speaker output and high-bandwidth frequency response provides the user with crystal-clear sound. A unique chassis equipped with pivoting ear cups provides a comfortable fit for the user and can be swiveled a full 180 for easy storage.
The Telex Ascend has been meticulously designed and rigorously tested to meet the FAA TSO standards necessary for use in commercial aircraft.
Features
- Completely redesigned next-generation headset frame provides a more comfortable fit with a new headband pad and improved adjustments on the ear cups and sliders
- Provides clear sound with automatically limited speaker output, an advanced noise reduction system, and high-bandwidth frequency response
- Advanced noise reduction (ANR) system shields out common cockpit noises like wind or avionics cooling fans (ANR is powered by a mic bias or rechargeable battery module)
- Highly adjustable design accommodates use in the cockpit but transitions easily to recreational applications with a removable boom and interchangeable connector
- Headset can be folded flat for storage; the unique chassis has pivoting ear cups that provide a comfortable fit for the user and with 180 of rotation, the headset can be folded up for easy storage
- ANR version with standard plug and jack connector
- FAA TSO-C139 approved
- Flexible cord can be easily coiled
Specifications
Weight:
5 oz – 8 oz (version dependent)
Cable:
1.8 m, straight
Headset:
Dual Plug: receivers power from boom microphone connection
Speaker:
Frequency response: 350 Hz – 3,000 Hz
Distortion: <5% @ 110 dB SPL/mW
Impedance: 600Ω ±20% (at plug)
Overload: 300 mW @ 1kHz, 8 hr
Microphone:
Frequency response: 100 Hz – 10,000 Hz per DO-214 fig.2-1
Distortion: <5% @ 114 dB SPL, 350 Hz – 6,000 Hz
Sensitivity: -28 dB ±3dBV/Pa @ 1kHz
Noise level: <1mV RMS
Insulation Resistance: >10MΩ between exposed materials and electrical circuit
Connector Plugs (PRD252100):
Dual plug: 2-conductor 0.250 diameter (headphone), 3-conductor 0.206 diameter (mic)
Color:
black
Product Codes
- Mfr Part No:PRD000252100
- EDMO #:PRD252100
- Brand:TELEX COMMUNICATIONS
- Category:Headsets & Intercoms
