Portable Network Re-Radiating Kit | N Connector, 5V Output, 110V Source Voltage
Product Description

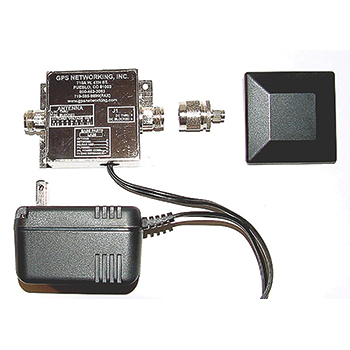

This portable networked re-radiating kit is designed to re-distribute GPS signals where an L1 antenna is already in use. Portable re-radiating kits consists of a re-radiating antenna, an amplifier with external power supply for powering the entire system. In the standard networked configuration, the re-radiating amplififer output J1 is DC blocked while the antenna port receives RF signal and passes DC voltage back to power an active antenna. Custom gain, DC power, and connector configurations are available.
This portable GPS re-radiating kit (EDMO# PNRRKIT110) features N-type connectors, a 110-volt source voltage, and 5V output voltage.
This product is only to be used for testing GNSS equipment/systems for the purpose of product development or fabrication.
Per the latest FCC guidance, the following use cases are NOT allowed:
- Fire Stations & First Responders
- Aircraft Repair and Maintenance
- Truck Repair and Maintenance
- Any other usages which could be considered "maintenance".
An FCC Experimental Broadcast license is required to operate this device, with the following exceptions:
- Device is operated in a shielded environment, such as an anechoic chamber.
- Device is operated in conjunction with a reradiating hood.
- Device is operated by federal or DoD personnel with the approval of the local spectrum manager.
Features
- Re-radiating amplifier with external power supply: 30 dB typical gain
- Option mounting kit hardware
- Optional variable gain amplifier: adjustable from 1 dB — 25 dB
- Optional variable gain amplifier with LCD: adjustable from 1 dB — 30 dB
Specifications
Re-Radiating Antenna:
Weight:
1.7 oz (48 g)
Dimensions:
0.67 x 2.6 x 2.6 in
Operating Temperature:
-40°C to 85°C
Frequency:
1.572 GHz — 1.578 GHz
Axial Ratio:
3 dB, max.
Peak Gain:
4 dBic
Bandwidth:
20 MHz, min.
Input SWR:
1.5:1, max.
Characteristic Impedance:
50Ω
Re-Radiating Amplifier
Weight:
9.9 oz (281 g)
Dimensions:
1.25 x 3.25 x 2.5 in, max. (not including connectors)
Operating Temperature:
-57°C to 87°C
Frequency Range:
1.1 GHz — 1.7 GHz
Characteristic Impedance:
50Ω
Req. DC Input V.:
3.3 VDC — 15 VDC
Current Draw:
36 mA, typical (40 mA, max.)
Gain:
29 dB — 31 dB (30 dB, typical)
Input SWR:
2.0:1
Output SWR:
2.0:1, max. (1.8:1, typical)
Noise Figure:
L1: 2.0 dB
L2: 4.25 dB
Band Gain Flatness:
0.5 dB, typical (1 dB, max.)
Group Delay:
L1: 1.5 ns
L2: 2.0 ns
Reverse Isolation:
L1: -55 dB
L2: -60 dB
Input P1dB:
L1: -21.5 dBm
L2: -23 dBm
3rd Order Intercept:
-13 dBm
Source Voltage Option:
110VAC Transformer (ITA Type A Wall Mount)
Output Voltage Option:
5V @ 130 mA
Connector Option:
N type
Product Codes
- Mfr Part No:PNRRKIT-N/5/110
- EDMO #:PNRRKIT110
- Brand:GPS NETWORKING
- Category:GPS Components & Accessories
