Portable Network Re-Radiating Kit | MC Connector, 9—32VDC, MIL-DTL-5015 10SL Two-Pin DC Connector
Product Description

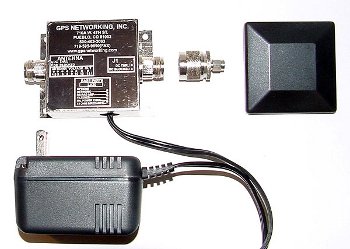

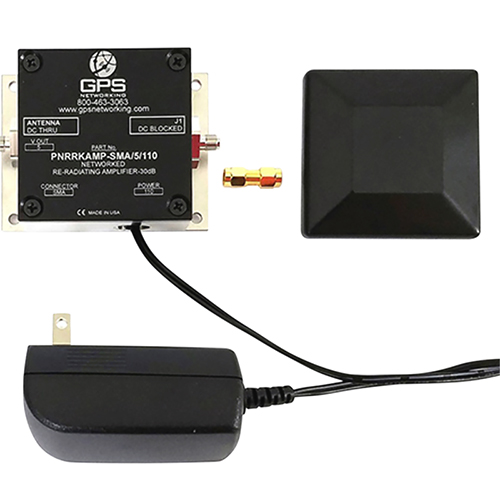

This portable networked re-radiating kit is designed to re-distribute GPS signals where an L1 antenna is already in use. Portable re-radiating kits consists of a re-radiating antenna, an amplifier with external power supply for powering the entire system. In the standard networked configuration, the re-radiating amplifier output J1 is DC blocked while the antenna port receives RF signal and passes DC voltage back to power an active antenna. Custom gain, DC power, and connector configurations are available.
This portable networked GPS re-radiating kit (EDMO# PNRRKIT-MC) features a customer supplied DC 9-32 VDC MIL-DTL-5015 10SL Two-Pin DC Connector.
This product is only to be used for testing GNSS equipment/systems for the purpose of product development or fabrication.
Per the latest FCC guidance, the following use cases are NOT allowed:
- Fire Stations & First Responders
- Aircraft Repair and Maintenance
- Truck Repair and Maintenance
- Any other usages which could be considered "maintenance".
An FCC Experimental Broadcast license is required to operate this device, with the following exceptions:
- Device is operated in a shielded environment, such as an anechoic chamber.
- Device is operated in conjunction with a reradiating hood.
- Device is operated by federal or DoD personnel with the approval of the local spectrum manager.
Features
- Re-radiating amplifier with external power supply: 30 dB typical gain
- Option mounting kit hardware
- Optional variable gain amplifier: adjustable from 1 dB — 25 dB
- Optional variable gain amplifier with LCD: adjustable from 1 dB — 30 dB
Specifications
Re-Radiating Antenna:
Weight:
1.7 oz (48 g)
Dimensions:
0.67 x 2.6 x 2.6 in
Operating Temperature:
-40°C to 85°C
Frequency:
1.572 GHz — 1.578 GHz
Axial Ratio:
3 dB, max.
bb
4 dBic
Bandwidth:
20 MHz, min.
Input SWR:
1.5:1, max.
Characteristic Impedance:
50Ω
Re-Rediating Amplifier
Weight:
9.9 oz (281 g)
Dimensions:
1.25 x 3.25 x 2.5 in, max. (not including connectors)
Operating Temperature:
-57°C to 87°C
Frequency Range:
1.1 GHz — 1.7 GHz
Characteristic Impedance:
50Ω
Req. DC Input V.:
3.3 VDC — 15 VDC
Current Draw:
36 mA, typical (40 mA, max.)
Gain:
29 dB — 31 dB (30 dB, typical)
Input SWR:
2.0:1
Outpbut SWR:
2.0:1, max. (1.8:1, typical)
Noise Figure:
L1: 2.0 dB
L2: 4.25 dB
Band Gain Flatness:
0.5 dB, typical (1 dB, max.)
Group Delay:
L1: 1.5 ns
L2: 2.0 ns
Reverse Isolation:
L1: -55 dB
L2: -60 dB
Input P1dB:
L1: -21.5 dBm
L2: -23 dBm
3rd Order Intercept:
-13 dBm
Source Voltage Option:
Customer Supplied DC 9-32 VDC MIL-DTL-5015 10SL Two-Pin DC Connector (Includes Mate)
Product Codes
- Mfr Part No:PNRRKIT-MC
- EDMO #:PNRRKIT-MC
- Brand:GPS NETWORKING
- Category:GPS Components & Accessories
