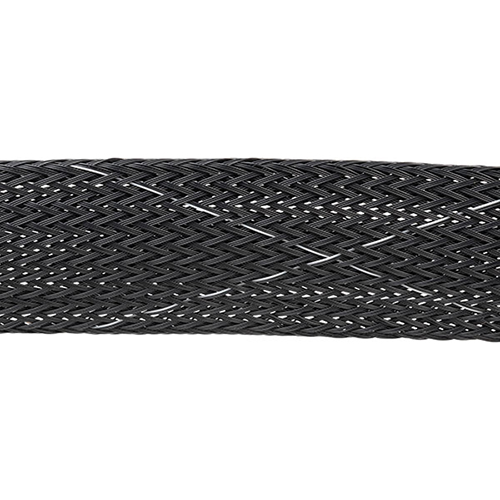

PFA Protect-Fast Braided Sleeving | 1-1/4in dimeter, 50ft roll, Black with White tracer
Product Description
Protect-Fast Advanced Braided Wraps & Sleeving provide enhanced wiring protection and containment for cable assemblies, hoses and wire harnesses in critical industries with challenging conditions like higher temperatures, chemical or flame exposure. They will keep data flowing and provide containment and identification for easier troubleshooting.
This Aero Braid sleeving (EDMO# PFR6BT0050) has a nominal size of 1-1/4-inch, is black with white tracer, and ships on a 50-foot roll.
Features
- For demanding conditions: high temperature, high vibration, chemical or fire exposure
- Protection from abrasion and cutting.
- Tough and lightweight for easy installation.
- Containment for easy management/troubleshooting/retrofits
PFA- PFR Sleeve
- UL and CSA Recognized Component
- Flame retardant per VW-1
- Temperature rating from -70ºC to 125ºC (-94ºF to 257ºF)
- Halogen Free and RoHS Compliant
- Extraordinary fray resistance
- Cuts cleanly with hot knife
Specifications
Material:
Polyethylene
Expansion:
150% sleeve
Flammability:
VW-1
Industry Standard Approvals:
FAR-25
Operating Temperature:
-70°C to 125°C (-94°F to 257°F)
Melt Point:
250°C (482°F)
Chemical Resistance:
Affected by Cholinated solvents and strong acids
Wall Thickness:
0.025 in
Filament Diameter:
0.010 in
Product Codes
- Mfr Part No:PFA-PFR-6-BT-0050
- EDMO #:PFR6BT0050
- Brand:DEVICE TECHNOLOGIES
- Category:Wire, Cable & Accessories
