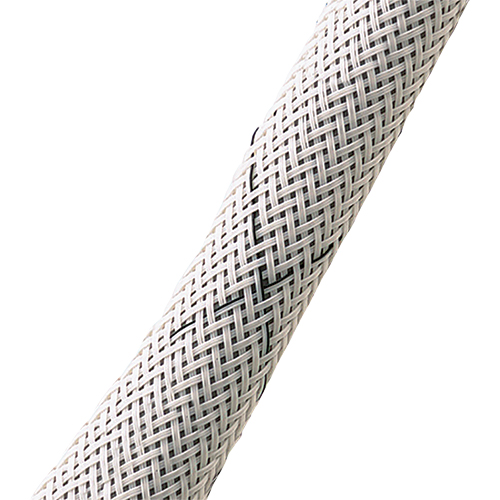

PFA-ECM Protect-Fast Braided Sleeving | 1-1/4in, 50ft roll, White with Black Tracer

DEVICE TECHNOLOGIES

Call For Pricing

Available to order

EDMO # PFAECM6WT5

MFR Part # PFA-ECM-6-WT-0050

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Protect-Fast Advanced Braided Wraps & Sleeving provide enhanced wiring protection and containment for cable assemblies, hoses and wire harnesses in critical industries with challenging conditions like higher temperatures, chemical or flame exposure. They will keep data flowing and provide containment and identification for easier troubleshooting.

This Aero Braid sleeving (EDMO# PFAECM6WT5) has a nominal size of 1-1/4-inch, is white with black tracer, and ships on a 50-foot mini roll.

Features

For demanding conditions: high temperature, high vibration, chemical or fire exposure
Protection from abrasion and cutting.
Tough and lightweight for easy installation.
Containment for easy management/troubleshooting/retrofits
PFA-ECM Sleeving
UL-VW-1 Flammability
Plenum rated NFPA 262 and UL 2024
Temperature rating from -75ºC to 150ºC (-103ºF to 302ºF)
Low out-gassing
Resistant to strong acids and gasoline

Specifications

Material:

Halar Expansion: 150% sleeve Flammability: VW-1 Industry Standard Approvals: FAR-25 Operating Temperature: -75°C to 150°C (-103°F to 302°F) Melt Temperature: 250°C (482°F) Chemical Resistance: Little to no effect Wall Thickness: 0.028 in Filament Diameter: 0.011 in
