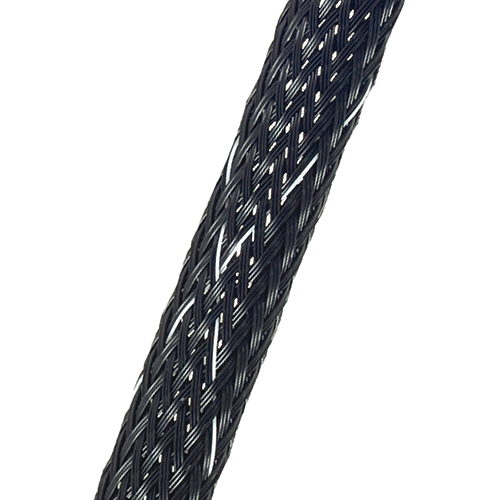

PFA-ECM Protect-Fast Braided Sleeving | 1/4in, 200ft roll, Black with White Tracer
Product Description
Protect-Fast Advanced Braided Wraps & Sleeving provide enhanced wiring protection and containment for cable assemblies, hoses and wire harnesses in critical industries with challenging conditions like higher temperatures, chemical or flame exposure. They will keep data flowing and provide containment and identification for easier troubleshooting.
This Aero Braid sleeving (EDMO# PFAECM1BT2) has a nominal size of 1/4-inch, is black with white tracer, and ships on a 200-foot mini roll.
Features
- For demanding conditions: high temperature, high vibration, chemical or fire exposure
- Protection from abrasion and cutting.
- Tough and lightweight for easy installation.
- Containment for easy management/troubleshooting/retrofits
PFA-ECM Sleeving
- UL-VW-1 Flammability
- Plenum rated NFPA 262 and UL 2024
- Temperature rating from -75ºC to 150ºC (-103ºF to 302ºF)
- Low out-gassing
- Resistant to strong acids and gasoline
Specifications
Material:
Halar
Expansion:
150% sleeve
Flammability:
VW-1
Industry Standard Approvals:
FAR-25
Operating Temperature:
-75°C to 150°C (-103°F to 302°F)
Melt Temperature:
250°C (482°F)
Chemical Resistance:
Little to no effect
Wall Thickness:
0.028 in
Filament Diameter:
0.011 in
Product Codes
- Mfr Part No:PFA-ECM-1-BT-0200
- EDMO #:PFAECM1BT2
- Brand:DEVICE TECHNOLOGIES
- Category:Wire, Cable & Accessories
