PE9566 N Female to BNC Male Right Angle Adapter | DC – 4 GHz, 1.3:1 VSWR, MIL-STD-348A
Product Description

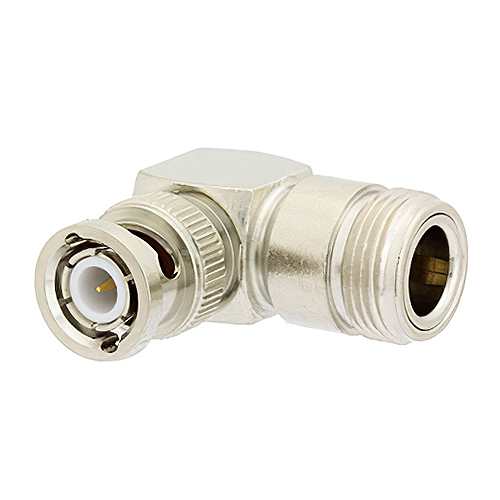

The PE9566 N female to BNC male adapter features a right angle body geometry and a gold-plated brass contact. This connector also has maximum 1.3:1 VSWR up to 4 GHz with a 50Ω impedance and is MIL-STC-348A compliant.
Features
- Right angle body geometry
- 1.3:1 VSWR up to 4 GHz
- 50Ω impedance
- Gold-plated brass contact
- N & BNC interface compliant MIL-STD-348A
Specifications
Weight:
0.105 lb (47.63 g)
Dimensions:
1.264 x 0.625 in (32.11 x 15.88 mm)
Frequency Range:
DC – 11 GHz
VSWR:
1.3:1
Connector Type:
N female (connector 1)
BNC male (connector 2)
Contact Material:
Gold-plated brass (30 µ-in min.)
Insulation Material:
PTFE
Outer Conductor Material:
Nickel-plated brass (100 µ-in)
Body Material:
Nickel-plated brass (100 µ-in)
Gasket Material:
Silicone
Coupling Nut:
Nickel-plated brass (100 µ-in)
Operating Temperature:
-65°C 165°C
Product Codes
- Mfr Part No:PE9566
- EDMO #:PE9566
