PE9444 Precision TNC Female to TNC Female Adapter | DC–18 GHz, 1.25:1 VSWR, MIL-STD-348A
Product Description

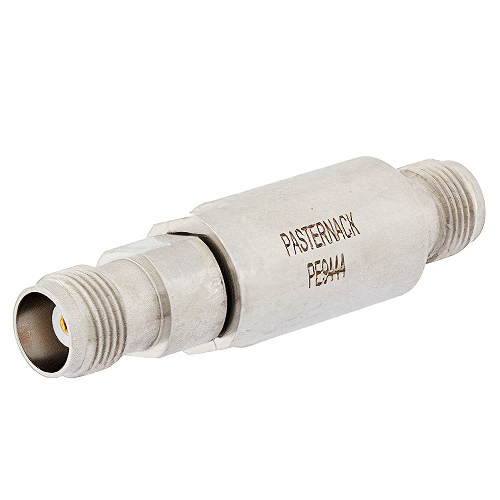

The PE9444 TNC female to TNC female adapter featuring a straight body geometry and gold over a nickel-plated berrylium copper contact. This connector also has maximum 1.25:1 VSWR up to 18 GHz with a 50Ω impedance and is MIL-STC-348A compliant.
Features
- Straight body geometry
- 1.25:1 maximum VSWR up to 18 GHz
- 50Ω impedance
- Gold over nickel-plated beryllium contacts
- TNC interface compliant with MIL-STD-348A
Specifications
Weight:
0.108 lb (48.99 g)
Dimensions:
2.382 x 0.62 in (59.13 x 15.75 mm)
Frequency Range:
DC – 18 GHz
VSWR:
1.25:1
Insertion Loss:
0.34 dB
Polarity:
Standard
Interface Specification:
MIL-STD-348A
Mating Cycles:
500
Contact Material:
Gold over nickel-plated berrylium copper (MIL-G-45204D)
Insulation Material:
PTFE
Other Conductor:
ASTM A380 passivated stainless steel
Operating Temperature:
-55°C to 100°C
Vibration:
MIL-STD-202, method 204, cond. D (20G's)
Salt Spray:
MIL-STD-202, method 101, cond. B (5% solution)
Product Codes
- Mfr Part No:PE9444
- EDMO #:PE9444
- Brand:PASTERNACK
- Category:Electrical Interconnect
