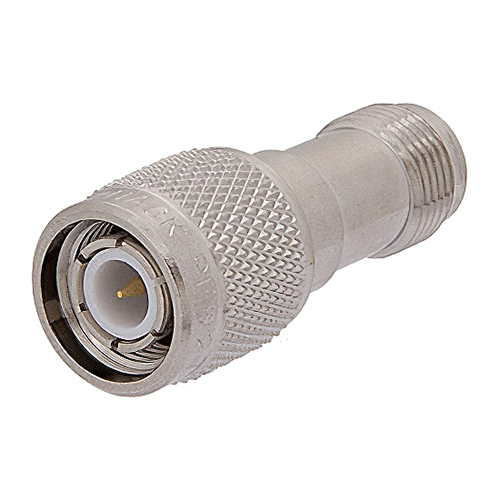

TNC Male to TNC Female RF Adapter | 50Ω, Straight Body Geometry
Product Description
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly changed connection is made with the adapter which can be easily replaced when it wears out after high usage.

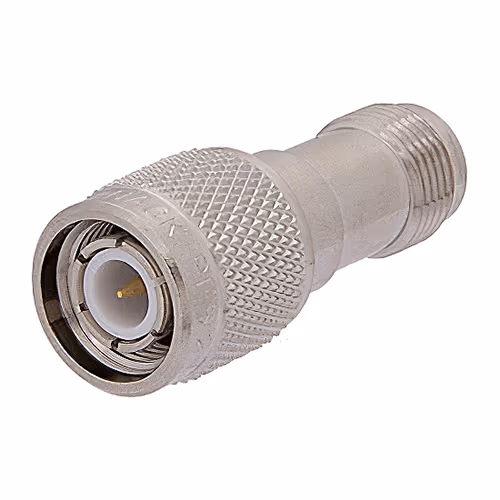

This RF adapter (EDMO# PE9270) is an TNC male to TNC female adapter with a straight body geometry.
Features
No product features currently available.
Specifications
Weight:
0.049 lb (22.23 g)
Dimensions:
1.469 x 0.591 in (37.31 x 15.01 mm)
Frequency Range:
DC to 11 GHz
VSWR:
1.5:1
Operating Voltage:
500 Vrms
Operating Range:
-65°C to 165°C
Impedance:
50Ω
Connector Types:
TNC Male to TNC Female
Polarity:
Standard
Contact Material:
Gold Plated Brass Contact
Body Material:
Nickel Plated Brass
Product Codes
- Mfr Part No:PE9270
- EDMO #:PE9270
- Brand:PASTERNACK
- Category:Electrical Interconnect
