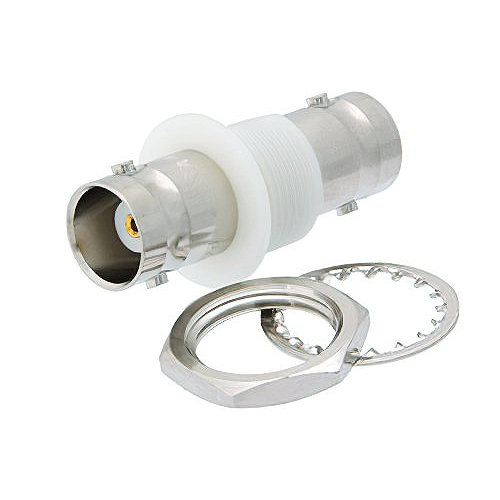

Bulkhead Mount Adapter | Isolated Ground, BNC Female to BNC Female
Product Description
The PE9172 is a bulkhead mount BNC to BNC adapter with an isolated ground and BNC female connectors on both ends that operates to 4 GHz and provides a maximum VSWR of 1.5:1. It allows installers to create external connections on their product enclosures, and can be used in a variety of other rack mount and panel mount applications.
Features
- Bulkhead mount with isolated ground
- BNC female to BNC female adapter
- DC to 4 GHz frequency range
- 1.5:1 VSWR
Specifications
Weight:
0.03 lb (13.61 g)
Dimensions:
1.28 x 0.61 in (32.51 x 15.49 mm)
Frequency Range:
DC – 4 GHz
VSWR:
1.5:1
Operation Voltage:
500 VRMS
Connector Type:
BNC female (connectors 1 & 2)
Polarity:
Standard
Connector Option:
Isolated ground (connector 1 & 2)
Hex Size:
16 mm
Contact Material:
Gold-plated brass, 30 µin min.
Insulation:
PTFE
Outer Conductor Material:
Nickel-plated brass, 100 µ min.
Body Material:
Nickel-plated brass, 100 µ in min.
Gasket:
ABS
Washer:
Nickel-plated steel (connector 1)
Nickel-plated brass (connector 2)
Temperature:
-40°C to 60°C (operating)
Product Codes
- Mfr Part No:PE9172
- EDMO #:PE9172
- Brand:PASTERNACK
- Category:Electrical Interconnect
