50Ω N-Connector to 75Ω F-Female Adapter | Straight Geometry, 1.3 VSWR
Product Description

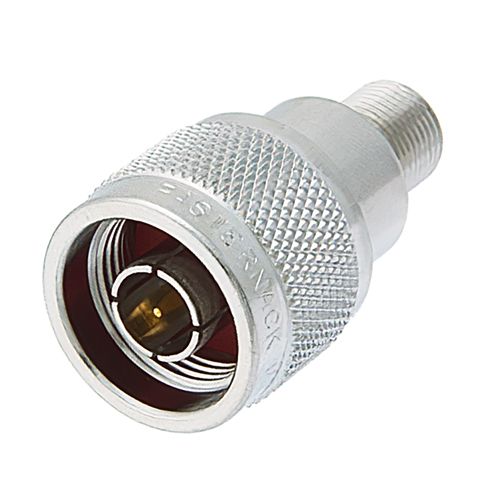

The PE9155 is a 50Ω N-male to 75Ω F-female adapter and features a straight body geometry and gold-plated brass contacts. This connect also has a maximum 1.3 VSWR up to 250 MHz an is MIL-STC-348A compliant.
Features
- Straight body geometry
- 50Ω N male to 75Ω F female connectors
- Maximum VSWR of 1.3 up to 250 MHz
- Gold-plated, brass contact (30 µ-in plating)
- MIL-STD-348A compliant
Specifications
Weight:
1.469 x 0.787 in (37.31 x 19.99 mm)
Dimensions:
0.079 lb (35.83 g)
Frequency Range:
DC – 250 MHz
VSWR:
1.3:1
Operation Voltage:
500 AC VRMS
Connector Type (MIL-STD-348A):
N male (connector 1)
F female (connector 2)
Contact Material:
gold-plated, brass, 30 µ-in (connector 1 & 2)
Insulation Material:
PTFE (connector 1 & 2)
Outer Connector Material:
nickel-plated brass, 30 µ-in (connector 2)
Body Material:
nickel-plated, brass, 100 µ-in (connector 1)
Gasket Material:
Silicon
Coupling Nut Material:
nickel-plated brass, 100 µ-in
Temperature Range:
-40°C to 60°C, operating
Product Codes
- Mfr Part No:PE9155
- EDMO #:PE9155
- Brand:PASTERNACK
- Category:Electrical Interconnect
