PE9131 N Female to TNC Female Adapter | DC – 3 GHz, 1.5:1 VSWR, MIL-STD-348A
Product Description

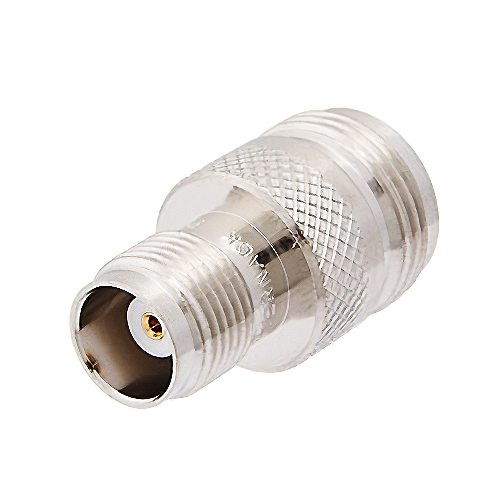

The PE9131 N female to TNC female adapter features a straight body geometry and a gold-plated brass contact. This connector also has maximum 1.5:1 VSWR up to 3 GHz with a 50Ω impedance and is MIL-STC-348A compliant.
Features
- Straight body geometry
- 1.5:1 maximum VSWR up to 3 GHz
- 50Ω impedance
- Gold-plated brass contact
- N & TNC interfaces compliant with MIL-STD-348A
Specifications
Weight:
0.051 lb (23.13 g)
Dimensions:
1.102 x 0.625 in (27.99 x 15.88 mm)
Connector Type:
N (female), connecter 1
TNC (female), connector 2
Polarity:
Standard
Impedance:
50Ω
Frequency Range:
DC – 3 GHz
VSWR:
1.5:1
Operating Voltage:
500 Vrms
Operating Temperature:
-65°C to 165°C
Adapter Style:
Straight
Contact Material:
Gold-plated, brass
Outer Conductor:
Nickel-plated, brass
Insulation Material:
PTFE
Mating Cycles:
500
Interface Specifications:
MIL-STD-348A
Product Codes
- Mfr Part No:PE9131
- EDMO #:PE9131
- Brand:PASTERNACK
- Category:Electrical Interconnect
