TNC to TNC Female Adapter
Product Description

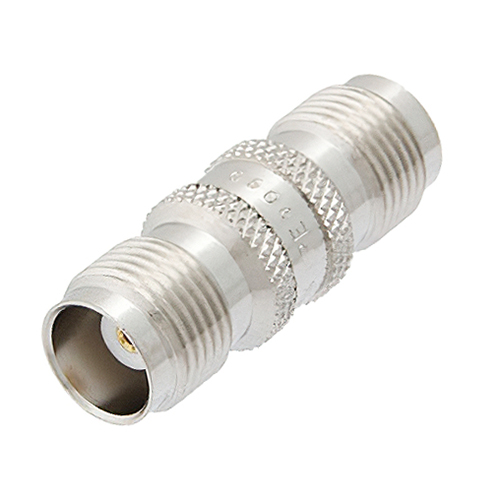

The PE9099 is a standard adapter with TNC female connectors at both ends. The adapter operates up to a maximum frequency of 5 GHz and offers VSWR of 1.3:1. This TNC adapter has a brass body with nickel plating and uses a gold-plated brass contact.
Features
- TNC to TNC female adapter
- 50Ω impedance
- 5 GHz Max. operating frequency
- VSWR 1.3:1
- Gold-plated brass contact
- Applications include general purpose test
Specifications
Weight:
0.027 lb (12.25 g)
Dimensions:
1.28 x 0.472 x 0.472 in (32.51 x 11.99 x 11.99 mm)
Connectors:
TNC female (both connectors)
Impedance:
50Ω
VSWR:
1.3:1
Frequency Range:
5 GHz, maximum
Operating Voltage:
500 Vrms
Body Geometry:
Straight
Contact Plating:
Gold-plated brass (MIL-G-45204)
Application:
General purpose test
Product Codes
- Mfr Part No:PE9099
- EDMO #:PE9099
- Brand:PASTERNACK
- Category:Electrical Interconnect
