PE9097 TNC Female to BNC Female Adapter | 1.3:1 VSWR, DC to 4 GHz
Product Description
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly changed connection is made with the adapter which can be easily replaced when it wears out after high usage.

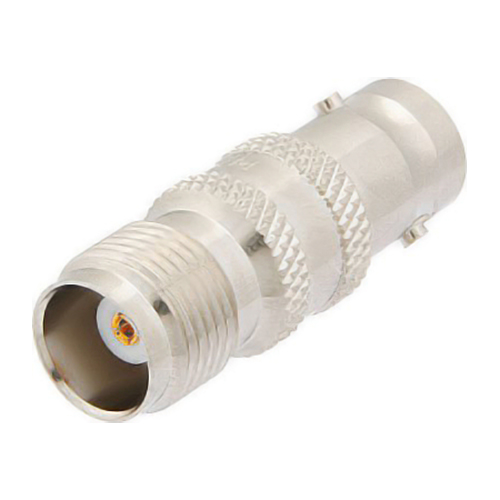

This RF adapter (EDMO# PE9097) is an TNC female to BNC female adapter features a straight body geometry and a gold-plated brass scontact. This connector also has maximum 1.3:1 VSWR up to 4 GHz with a 50Ω impedance.
Features
- Straight Body Geometry
- 1.3:1 maximum VWSR up to 4 GHz
- 50 Ω impedance
- Gold-plated brass contact
- TNC Female to BNC Female Adapter
Specifications
Weight:
0.027 lb (12.25 g)
Dimensions:
1.28 x 0.472 x 0.472 in (32.51 x 11.99 x 11.99 mm)
Frequency Range:
DC – 4 GHz
VSWR:
1.3:1
Operating Voltage:
500 Vrms AC
Dielectric Withstanding Voltage:
1,500 Vrms AC
Contact Material:
Gold-plated brass (30 µ-in min.)
Insulation Material:
PTFE
Outer Conductor:
Nickel-plated brass (100 µ-in min.)
Operating Temperature:
-65°C 165°C
Product Codes
- Mfr Part No:PE9097
- EDMO #:PE9097
- Brand:PASTERNACK
- Category:Electrical Interconnect
