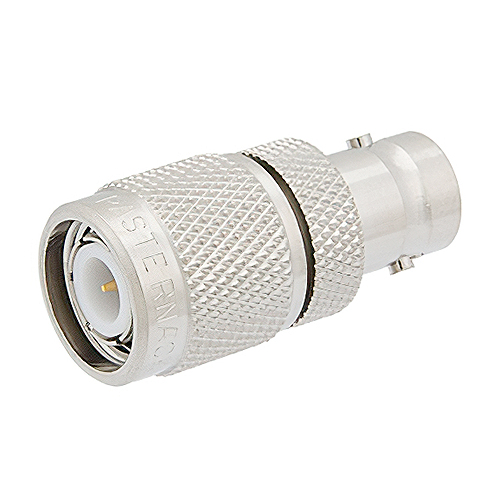

PE9088 TNC Male to BNC Female Adapter | DC – 2 GHz, 1.5:1 VSWR
Product Description
The PE9088 TNC male to BCN female adapter featuring a straight body geometry and a gold-plated brass contact. This connector also has maximum 1.5:1 VSWR up to 2 GHz with a 50Ω impedance.
Features
- TNC male to BNC female adapter
- Straight body geometry
- 1.5:1 maximum VSWR up to 2 GHz
- Gold-plated contact
- 50Ω impedance
Specifications
Weight:
0.047 lb (21.32 g)
Dimensions:
1.24 x 0.571 x 0.571 in (31.5 x 14.5 x 14.5 mm)
Frequency Range:
DC – 2 GHz
VSWR:
1.5:1
Operating Voltage:
500 Vrms AC
Polarity:
Standard
Contact:
Gold-plated brass (30 µ-in min.)
Insulation Material:
PTFE
Outer Conductor:
Nickel-plated brass (100 µ-in min.)
Body Material:
Nickel-plated brass (100 µ-in min.)
Coupling Nut Material:
Nickel-plated brass (100 µ-in min.)
Operating Temperature:
-65°C to 165°C
Product Codes
- Mfr Part No:PE9088
- EDMO #:PE9088
- Brand:PASTERNACK
- Category:Electrical Interconnect
