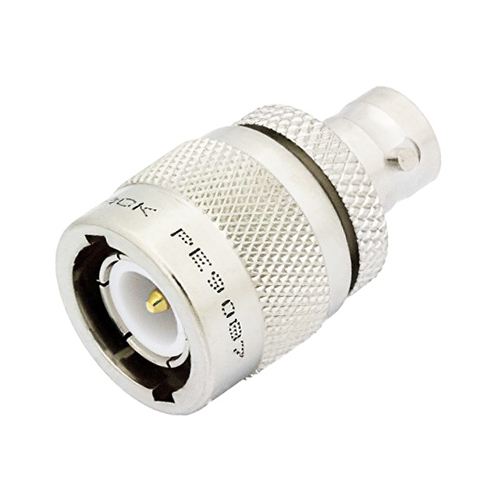

BNC Female to C Male Adapter
Product Description
The PE9087 is a BNC female to C male coaxial adapter. The connector operates up to a maximum frequency of 4 GHz and offers VSWR of 1.3:1. This BNC to C connector has a brass body with nickel plating and uses a gold-plated brass contact.
Features
- BNC female to C male adapter
- MIL-STD-348A
- 50Ω impedance
- 5 GHz Max. operating frequency
- VSWR 1.3:1
- Gold-plated brass contact
Specifications
Weight:
0.075 lb (34.02 g)
Dimensions:
1.266 x 0.748 x 0.748 in (32.16 x 19 x 19 mm)
Body Geometry:
straight
Contacts:
gold-plated brass contact
Minimum Contact Plating:
30 µ-in
Product Codes
- Mfr Part No:PE9087
- EDMO #:PE9087
- Brand:PASTERNACK
- Category:Electrical Interconnect
