PE9086 N Male to N Female Right Angle Adapter | 1.3:1 VSWR, 11 GHz
Product Description

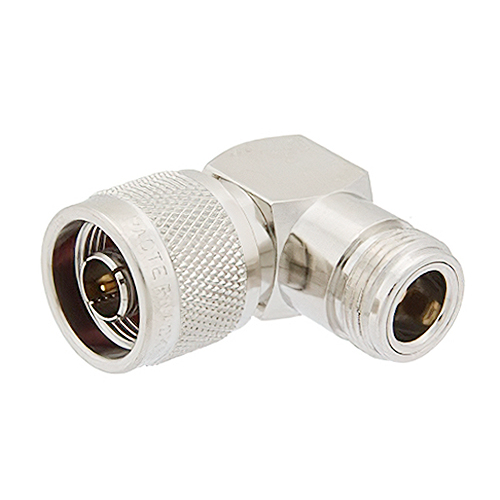

The PE9086 N male to N female right angle adaptor features gold-plated brass contact, a maximum 1.3:1 VSWR up to 11 GHz, and a 50Ω impedance. MIL-STD-3348A compliant.
Features
- Right angle body geometry
- Gold-plated brass contact
- 50Ω impedance
- 1.3:1 maximum VSWR up to 11 GHz
- N-type interface compliant with MIL-STD-348A specification
Specifications
Weight:
0.16 lb (72.57 g)
Dimensions:
1.441 x 0.787 x 1.371 in (36.6 x 19.99 x 34.82 mm)
Frequency Range:
DC – 11 GHz
VSWR:
1.3:1
Operating Voltage:
1,000 Vrms AC
Connector Type:
N male (Connector 1)
N female (Connector 2)
Polarity:
Standard
Interface Specification:
MIL-STD-3348A
Contact Material:
Gold-plated brass (30 µ-in min.)
Insulation Material:
PTFE
Outer Conductor:
Nickel-plated brass (100 µ-in min.)
Body Material:
Nickel-plated brass (100 µ-in min.)
Gasket Material:
Silicone
Coupling Nut Material:
Nickel-plated brass (100 µ-in min.)
Operating Temperature:
-65°C to 165°C
Product Codes
- Mfr Part No:PE9086
- EDMO #:PE9086
- Brand:PASTERNACK
- Category:Electrical Interconnect
