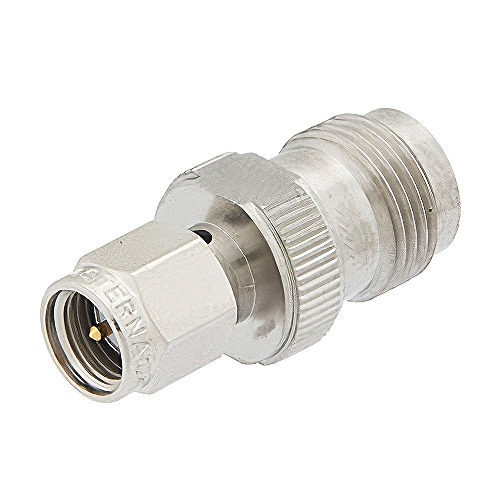

PE9078 SMA Male to TNC Female Adapter | DC – 11 GHz, MIL-STD-346A
Product Description
The PE9078 SMA male to TNC female adapter features a straight body geometry and a gold-plated beryllium copper contact. This connector also has maximum 1.3:1 VSWR up to 11 GHz with a 50Ω impedance and is MIL-STC-346A compliant.
Features
- Straight body geometry
- 1.3:1 maximum VSWR up 11 GHz
- 50Ω impedance
- Gold-plated beryllium copper contact (50 µ-in plating)
- SMA male to TNC female adapter (MIL-STD-346A compliant)
Specifications
Weight:
0.025 lb (11.34 g)
Dimensions:
1.03 x 0.5 x 0.5 in (26.16 x 12.7 x 12.7 mm)
Frequency Range:
DC – 11 GHz
Impedance:
50Ω
VSWR:
1.3:1
Operating Voltage:
500 Vrms AC
Connector Type:
SMA male (connector 1)
TNC female (connector 2)
Hex Size:
5/8 in
Polarity:
standard
Interface specification:
MIL-STC-346A
Mating Torque:
3 – 5 in-lb (0.34 – 0.57 Nm)
Contact Material:
gold-plated beryllium copper (50 µ-in min.)
Insulation Material:
PTFE
Outer Conductor:
Passivated Stainless Steel (TNC connector)
Body Material:
Passivated Stainless Steel (SMA)
Gasket Material:
Silicone
Coupling Nut Material:
nickel-plated brass (100 µ-in min.)
Operating Temperature:
-65°C to 165°C
Product Codes
- Mfr Part No:PE9078
- EDMO #:PE9078
- Brand:PASTERNACK
- Category:Electrical Interconnect
