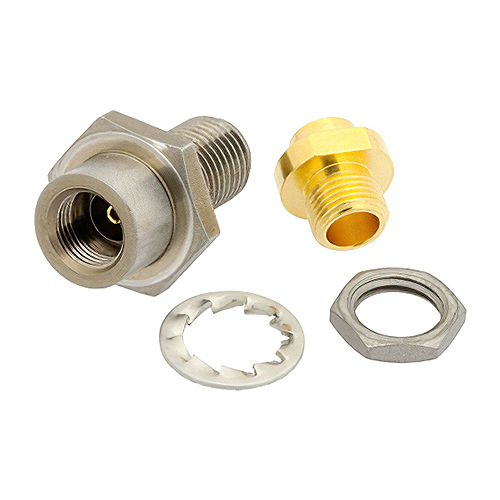

3.5mm Female Bulkhead Mount Connector | Clamp/Solder


PASTERNACK

CALL FOR PRICING
Available To Order
EDMO#PE4985
MFR#PE4985

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

The PE4985 3.5mm female bulkhead coaxial connector has an interface type of PE-SR402AL, PE-SR402FL, RG402 and a 50 Ohm impedance. The connector uses shield/contact clamp/solder as an attachment method and has a passivated stainless steel body. It has a PTFE dielectric type and is RoHS and REACH compliant.

Features

  • Gold plated contact
  • Clamp/solder attachment
  • 50Ω impedance
  • PE-SR402AL, PE-SR402FL, RG402 interface
  • RoHS and REACH compliant

Specifications

Weight:
0.013 lb

Dimensions:
0.865 x 0.438 in.

Polarity:
Standard

Connector Series:
3.5mm

Connector Gender:
Female

Impedance:
50 Ohm

Body Style:
Straight

Attachment Method:
Clamp/Solder

Mount Method:
Bulkhead

Product Codes

  • Mfr Part No:PE4985
  • EDMO #:PE4985
  • Brand:PASTERNACK
  • Category:Electrical Interconnect
