PE4959 C Male Right Angle Connector | 50Ω, Crimp/Solder Attachment, MIL-STD-348


PASTERNACK

CALL FOR PRICING
Available To Order
EDMO#PE4959
MFR#PE4959

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

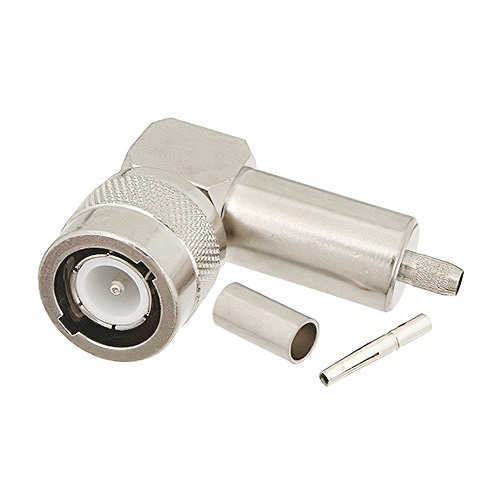

The PE4959 C-type male right angle connector features a crimp/solder attachment method for attaching to PE-P195, PE-C195, RG58, RG141, RG303, 0.195 inch, and LMR-195 coax cable. This connector has a 50Ω impedance, silver-plated contacts, and MIL-STD-348 compatibility.

Features

  • C male connector
  • Right angle body geometry
  • 50Ω impedance
  • Silver-plated contact plating per QQ-S-365
  • PE-P195, PE-C195, RG58, RG141, RG303, 0.195 inch, LMR-195 cable compatibility

Specifications

Weight:
0.119 lb (53.98 g)

Dimensions:
1.975 x 0.75 x 1.305 in (50.17 x 19.05 x 33.15 mm)

Connector Type:
C-type male

Body Geometry:
Right angle

Attachment Method:
Crimp/solder

Impedance:
50Ω

Operating Temperature:
-65°C to 165°C

Contact Material:
Silver-plated (per QQ-S-365)

Insulation Material:
PTFE

Body Material:
Brass

Coupling Nut Material:
Nickel-plated brass (QQ-N-290)

Product Codes

  • Mfr Part No:PE4959
  • EDMO #:PE4959
  • Brand:PASTERNACK
  • Category:Electrical Interconnect
