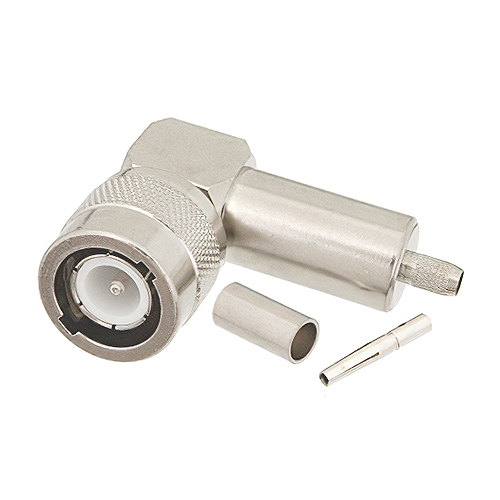

PE4958 C Male Connector | 50Ω, Right angle, Crimp/Solder
Product Description
The PE4958 C male connector features a crimp/solder attachment for RG55, RG141, RG142, RG223, and RG400 coaxial cable. This right angle TNC connector has a brass body with nickel plating.
Features
- C male connector
- 50Ω impedance
- Nickel-plated brass body
- Clamp/solder attachment
Specifications
Weight:
0.13 lb (58.97 g)
Dimensions:
1.97 x 0.75 x 1.30 in (50.2 x 19.1 x 33.1 mm)
Body Geometry:
Right angle
Contact Material:
Nickel Plated Brass
Connect Interface Types:
RG55, RG141, RG142, RG223, RG400
Operating Range:
-65°C to 165°C
Product Codes
- Mfr Part No:PE4958
- EDMO #:PE4958
- Brand:PASTERNACK
- Category:Electrical Interconnect
